The use of new technologies and digital implant solutions in a one-stage surgical procedure

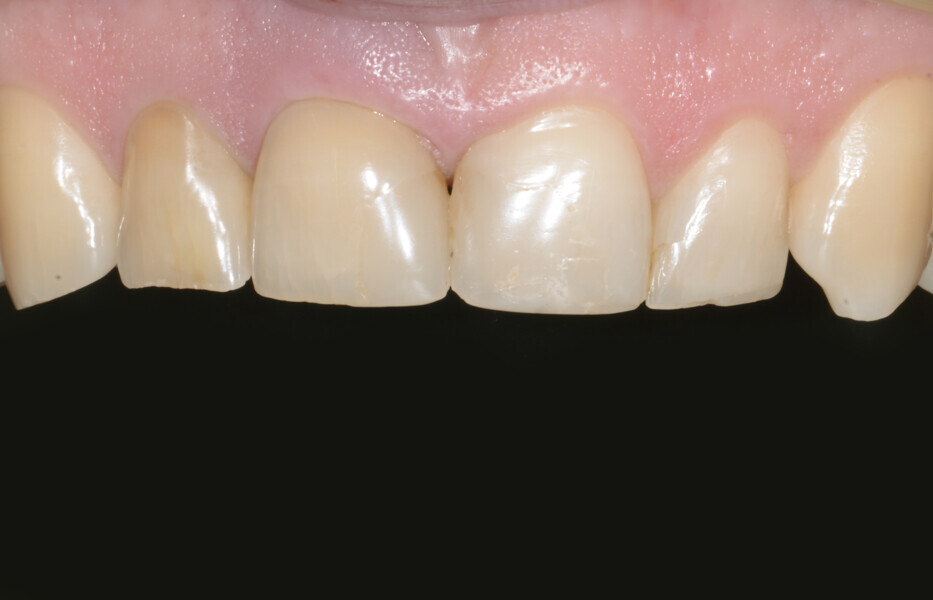

Fig. 1: Situation before treatment, which led to the decision to extract tooth #11.

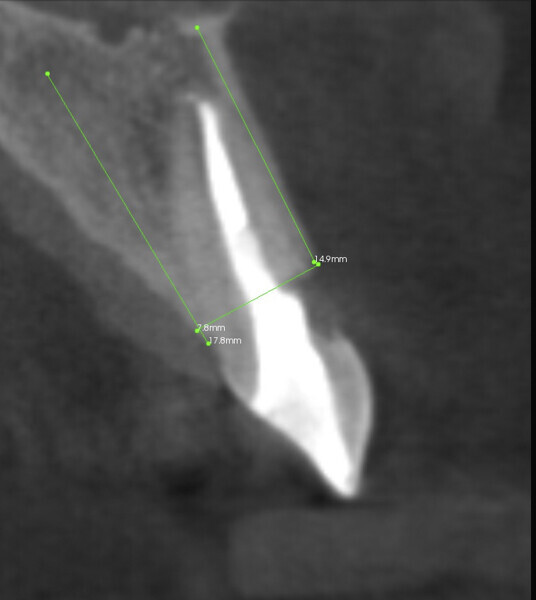

Fig. 2: CBCT scan: the root of the tooth was visibly fractured, and there was clear external resorption of the root from the vestibular side.

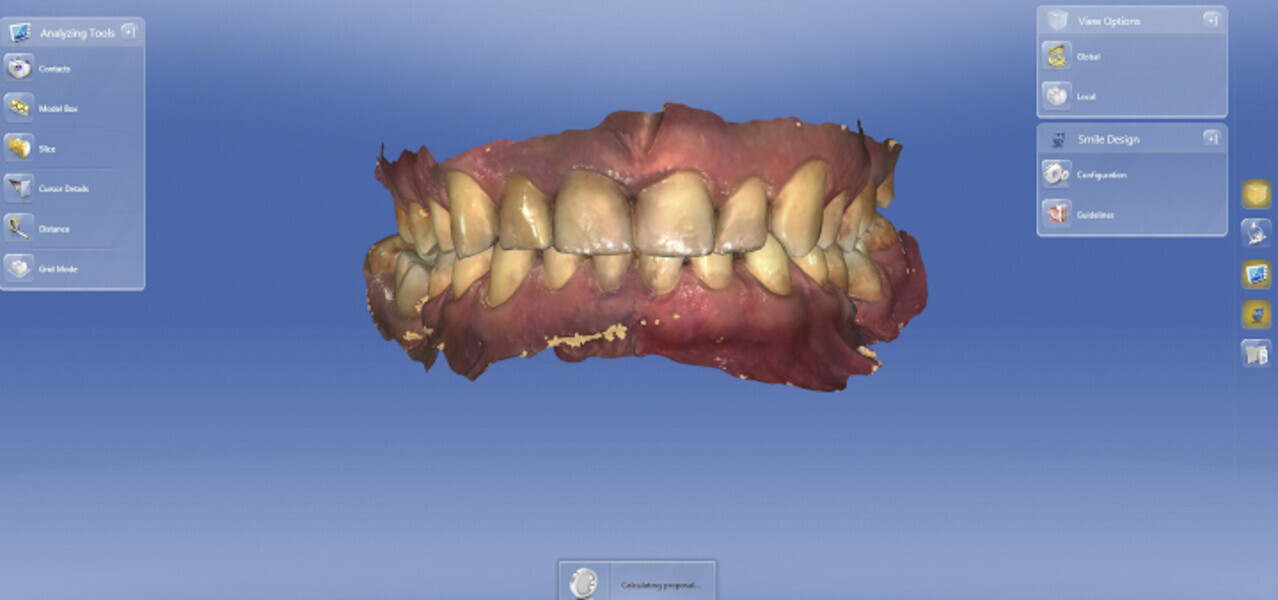

Fig. 3: Buccal scan: information on the positioning of the maxilla relative to the mandible. This is absolutely necessary for designing a crown.

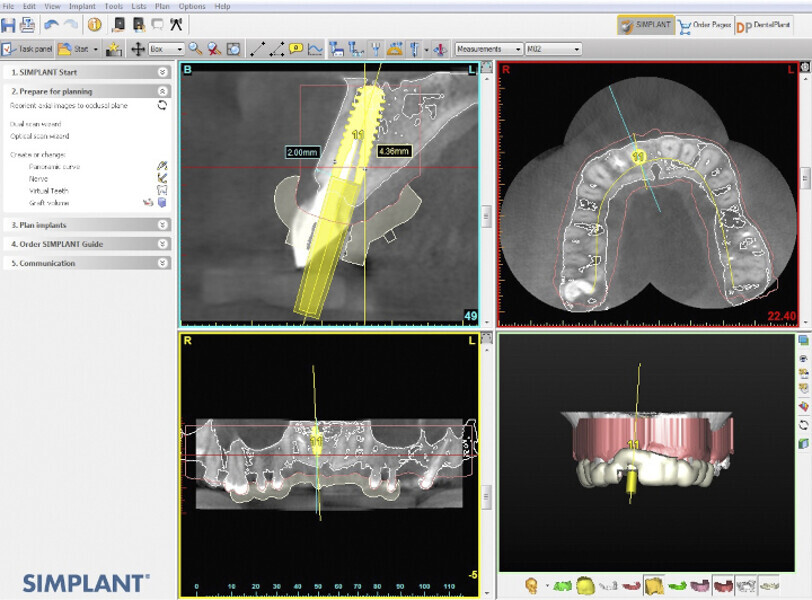

Fig. 4: Designing the guide in the Simplant software based on the planned implant position.

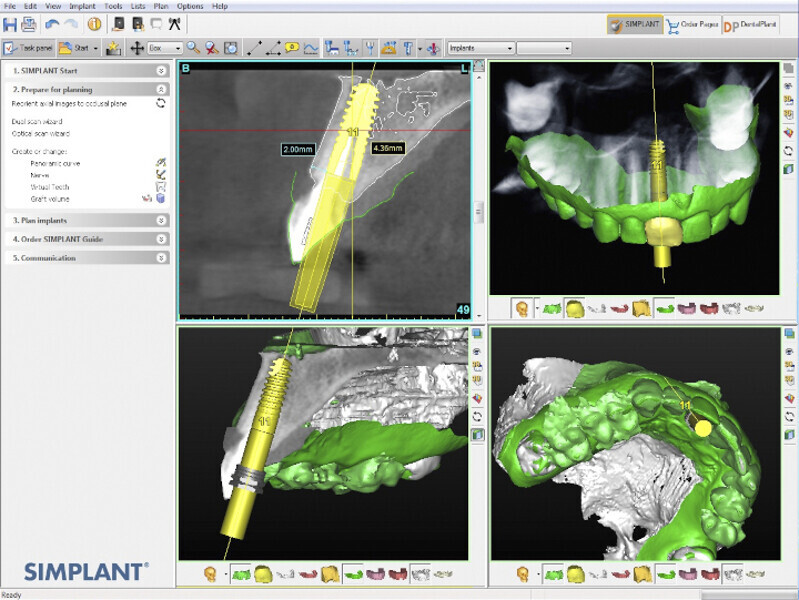

Fig. 5: Overlaying the CBCT and CEREC intra-oral scans, as well as the planned implant position, in the Simplant software.

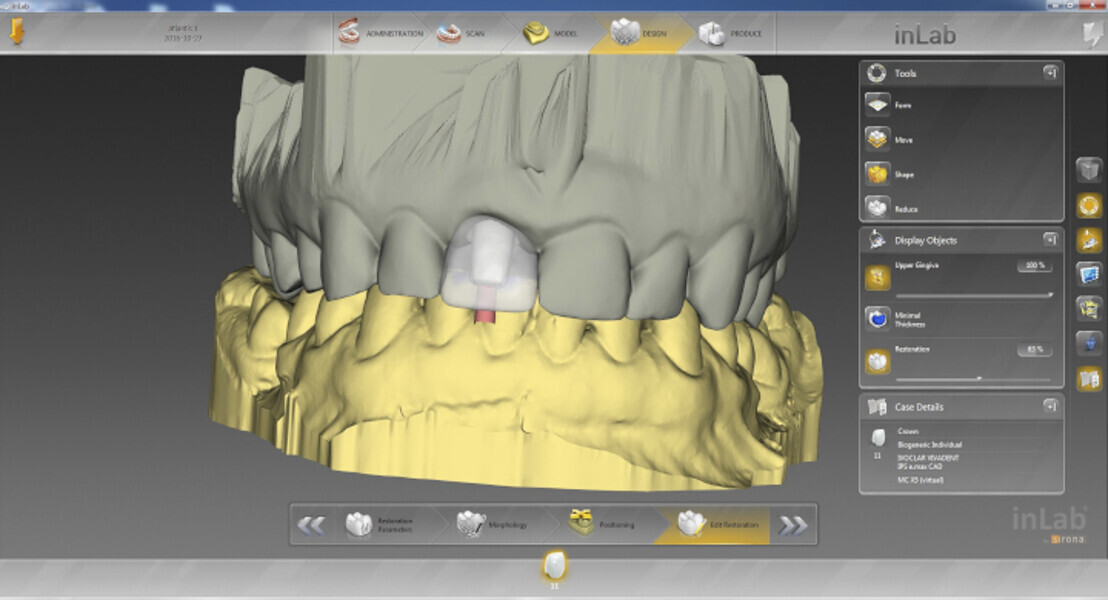

Fig. 6: Planning the shape and size of the future CAD/CAM full ceramic crown in cut-back technique in the inLab software (Dentsply Sirona) based on the Atlantis Core File received.

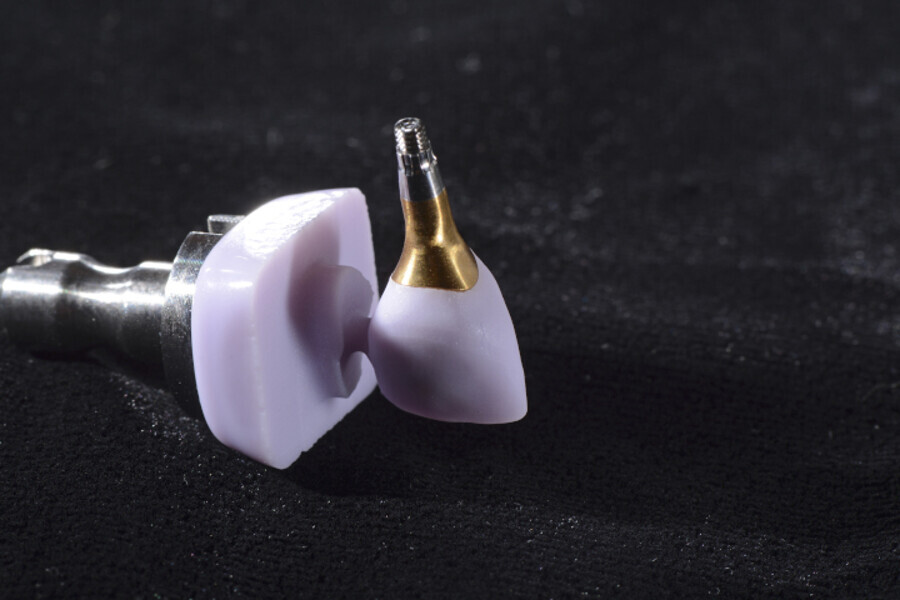

Fig. 7: Full ceramic crown milled in the CEREC CAD/CAM system before sintering. As can be seen in the image, the Atlantis abutment and the crown would fit perfectly together.

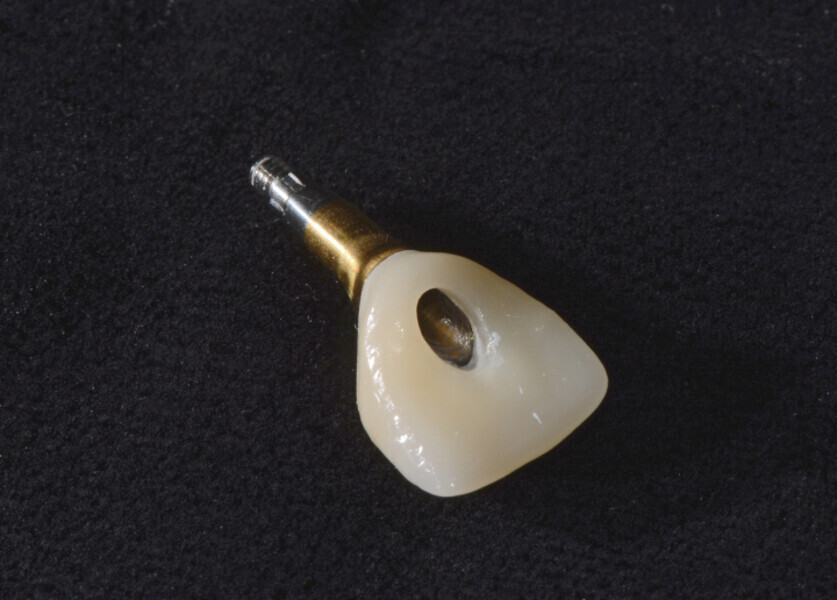

Fig. 8: The completed screw-retained IPS e.max crown ready to be cemented extra-orally with the Atlantis abutment (titanium nitride abutment surface).

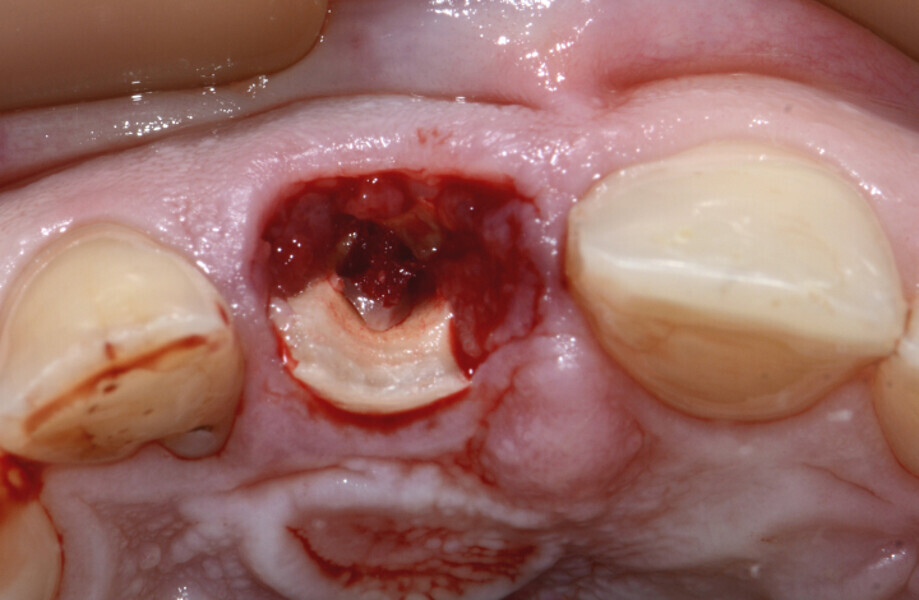

Fig. 9: Visible granulation tissue at the resorption and fracture area of tooth #11.

Fig. 10: Removal of the granulation tissue with an Er:YAG laser.

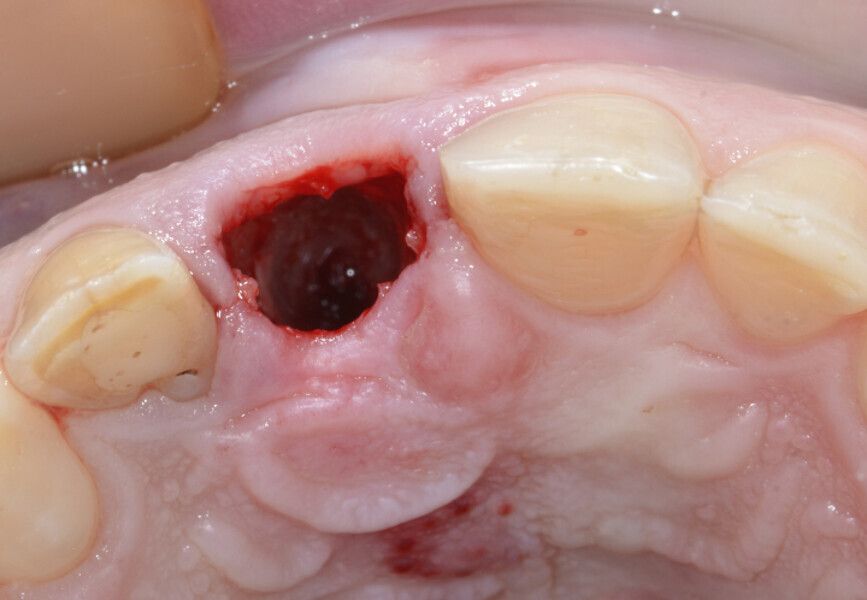

Fig. 11: Clean socket after atraumatic extraction of tooth #11.

Fig. 12: Tooth-supported Simplant Guide.

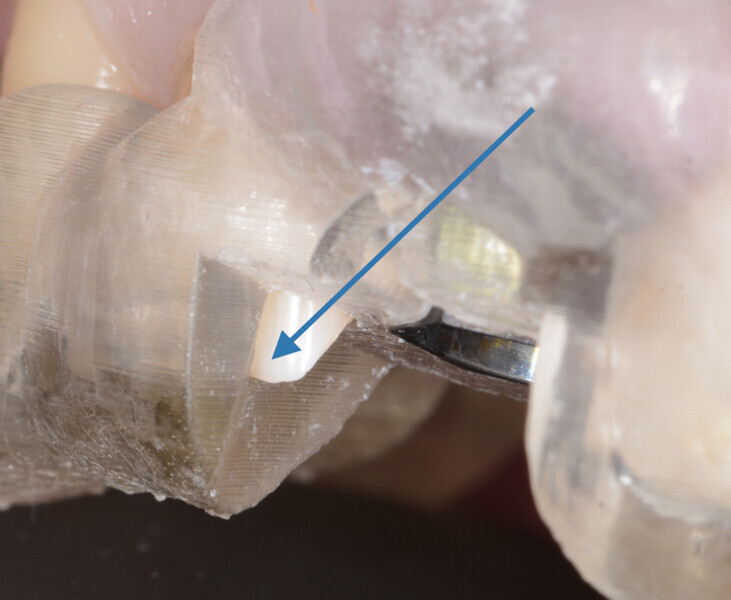

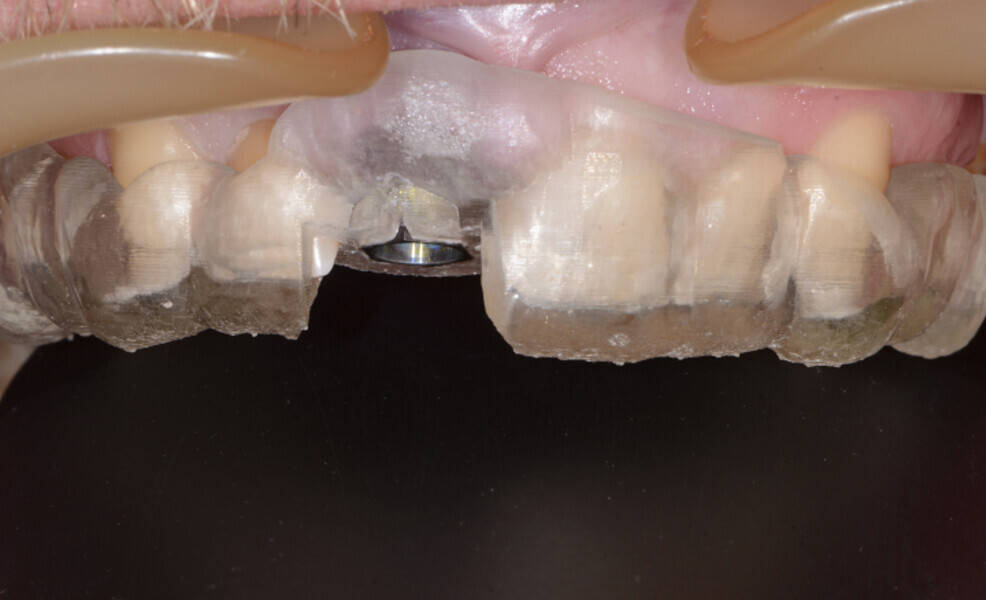

Fig. 13: The guide fitted flawlessly on the patient’s teeth.

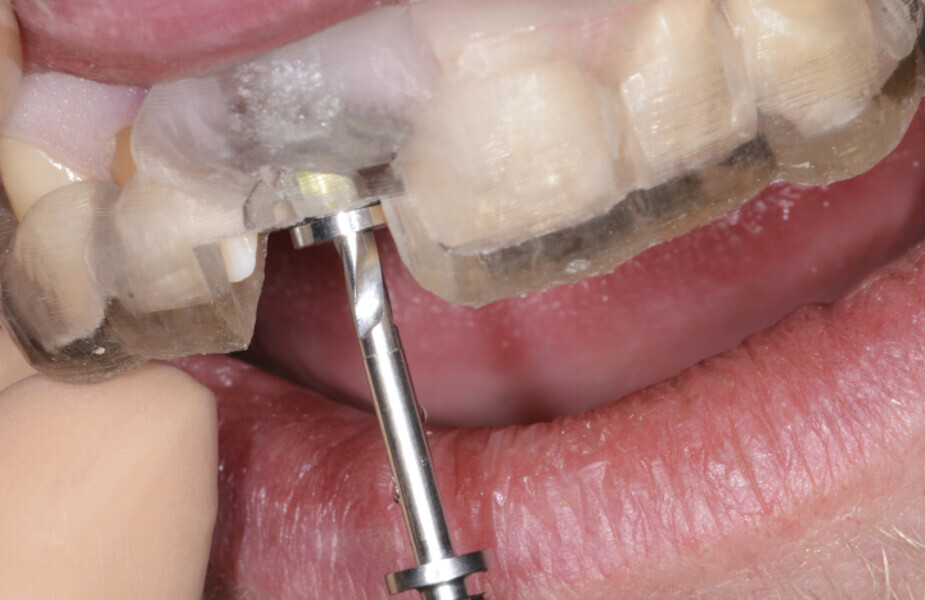

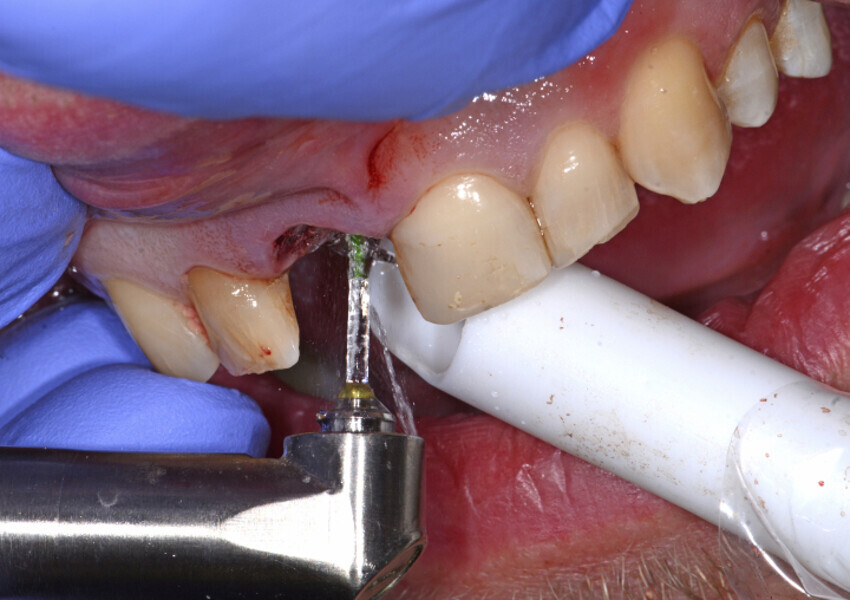

Fig. 14: A sequence of implant drills with specific guide sleeves were used.

Fig. 15: Placement of the Ankylos implant using the Simplant Guide.

Fig. 16: Sub-crestal placement of the Ankylos implant. Attachment of the screw-retained IPS e.max crown on to the Atlantis abutment (non-functional restoration).

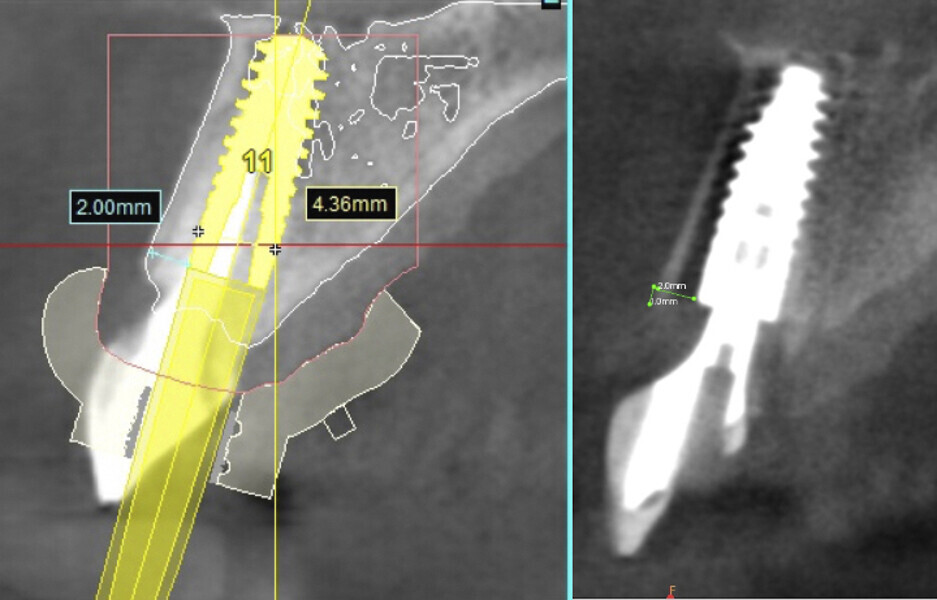

Fig. 17: A follow-up CBCT scan demonstrated the perfectly executed positioning of the implant as it had been planned.
