Immediate loading of a socket shield post-extraction implant with the final CAD/CAM crown

Home/Photo Galleries

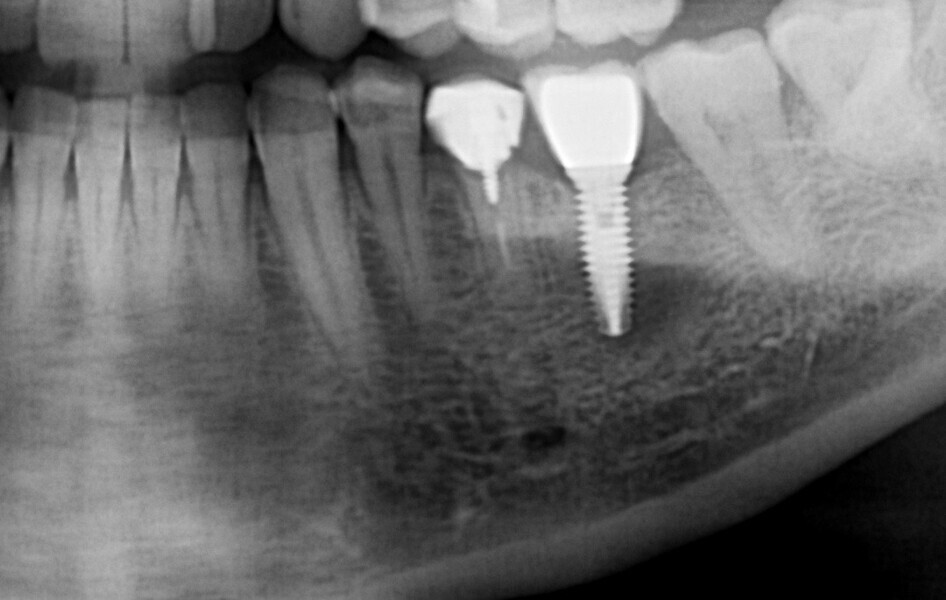

Fig. 1a: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 1a: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 1b: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 1b: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

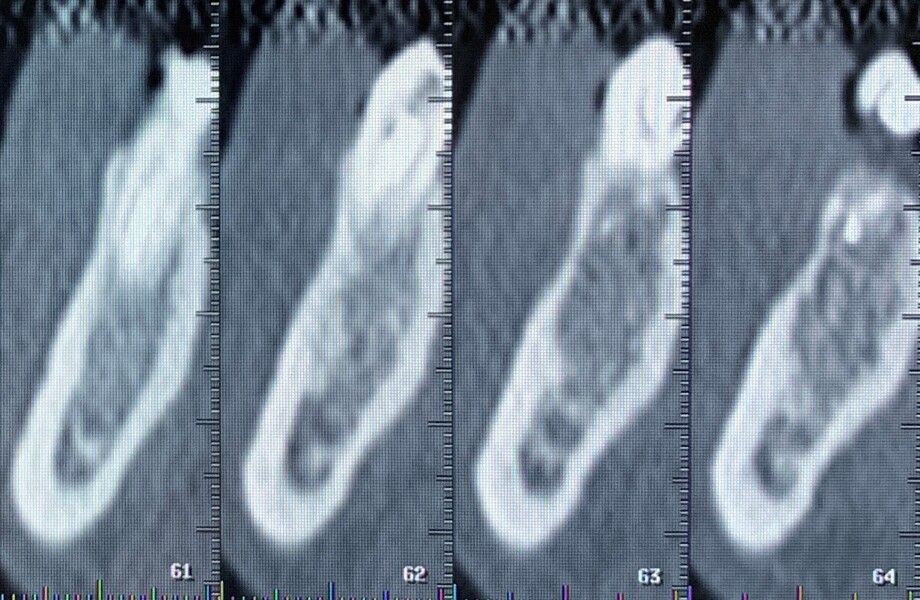

Fig. 1c: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 1c: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

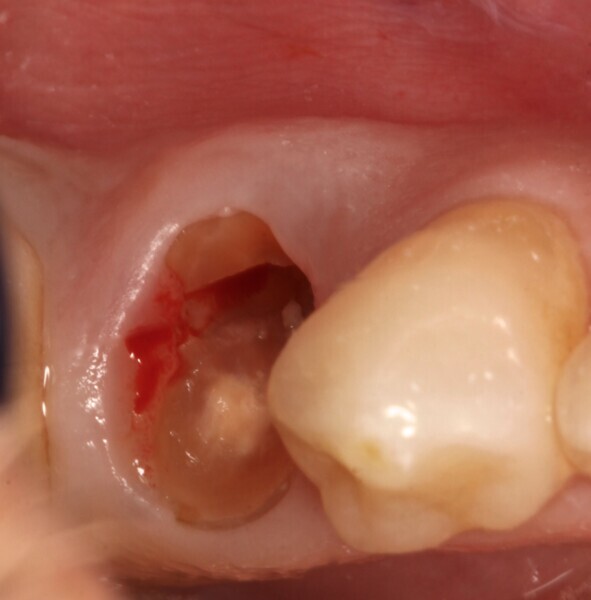

Fig. 2: Sectioned root.

Fig. 2: Sectioned root.

Fig. 3: Implant without intermediate abutment.

Fig. 3: Implant without intermediate abutment.

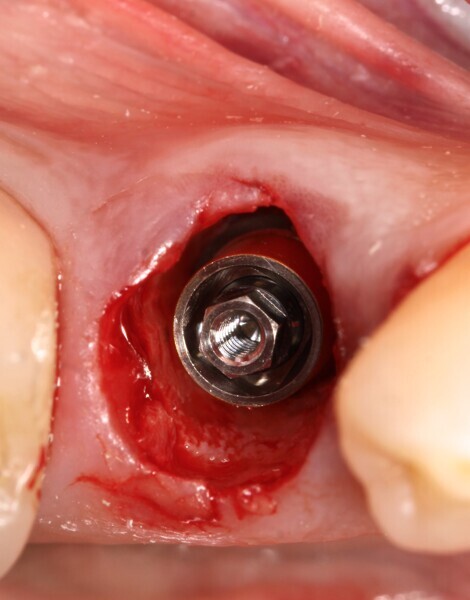

Fig. 4: Implant with intermediate abutment.

Fig. 4: Implant with intermediate abutment.

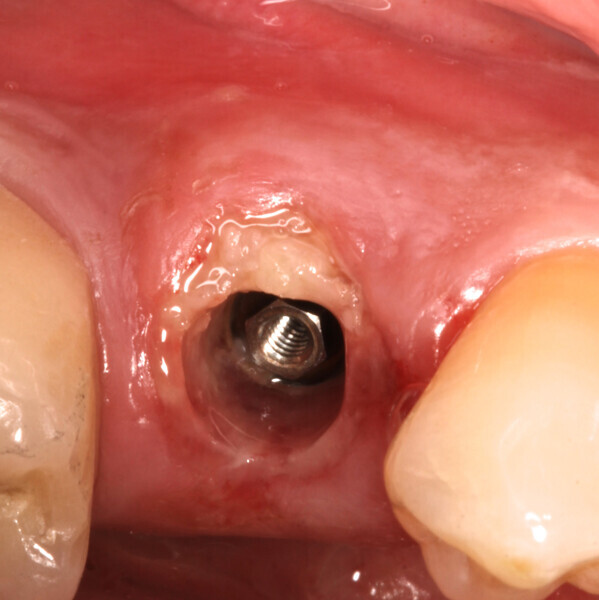

Fig. 5: The gap distance between the implant and the SS was filled solely with Endoret.

Fig. 5: The gap distance between the implant and the SS was filled solely with Endoret.

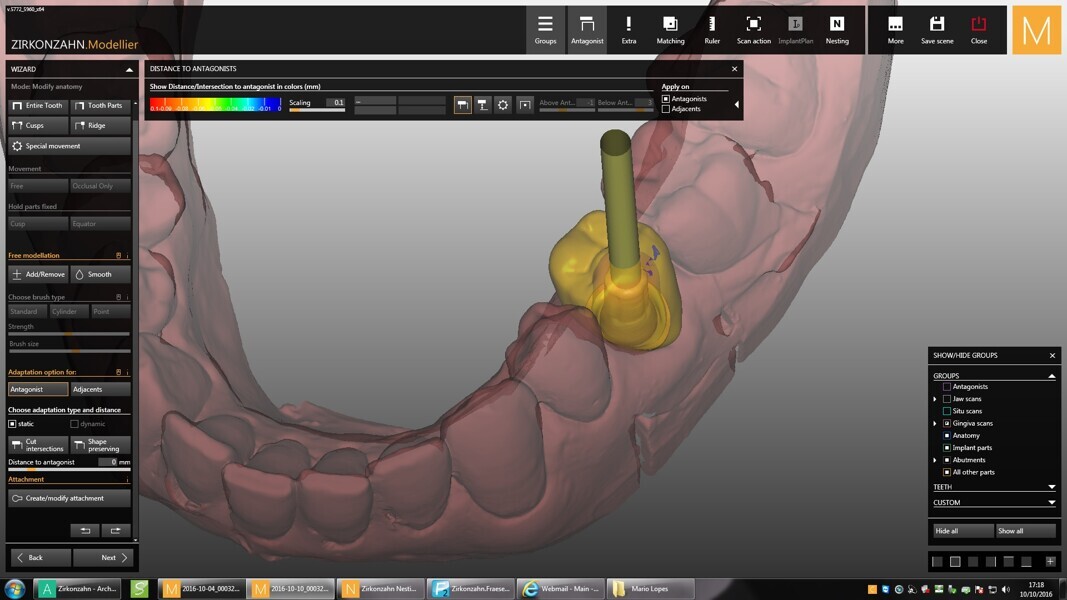

Fig. 6: Design of the CAD/CAM crown.

Fig. 6: Design of the CAD/CAM crown.

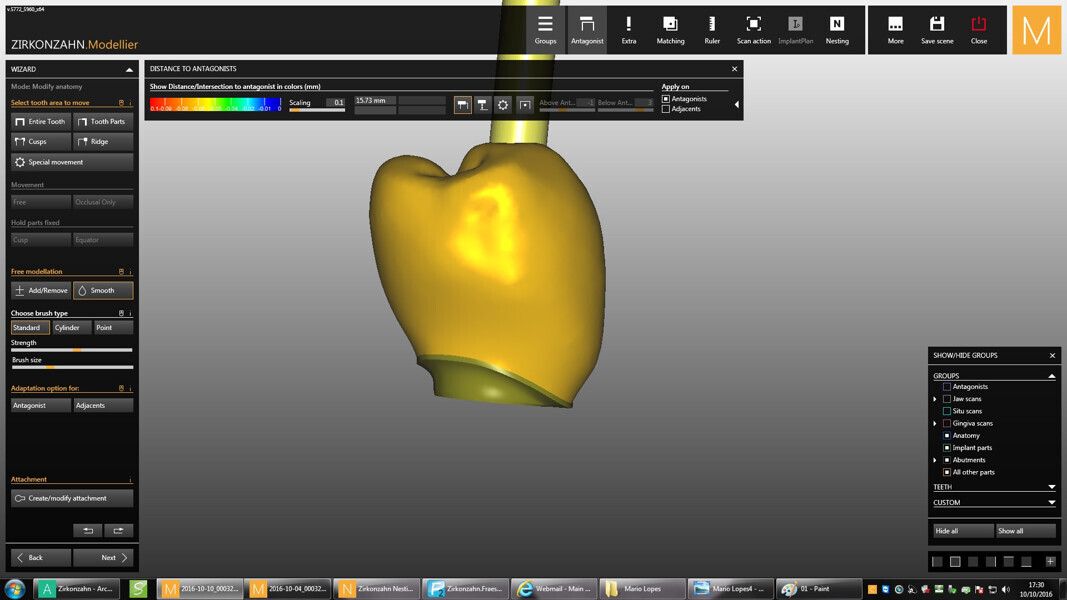

Fig. 7: Design of the CAD/CAM crown.

Fig. 7: Design of the CAD/CAM crown.

Fig. 8: Installation of the final restoration.

Fig. 8: Installation of the final restoration.

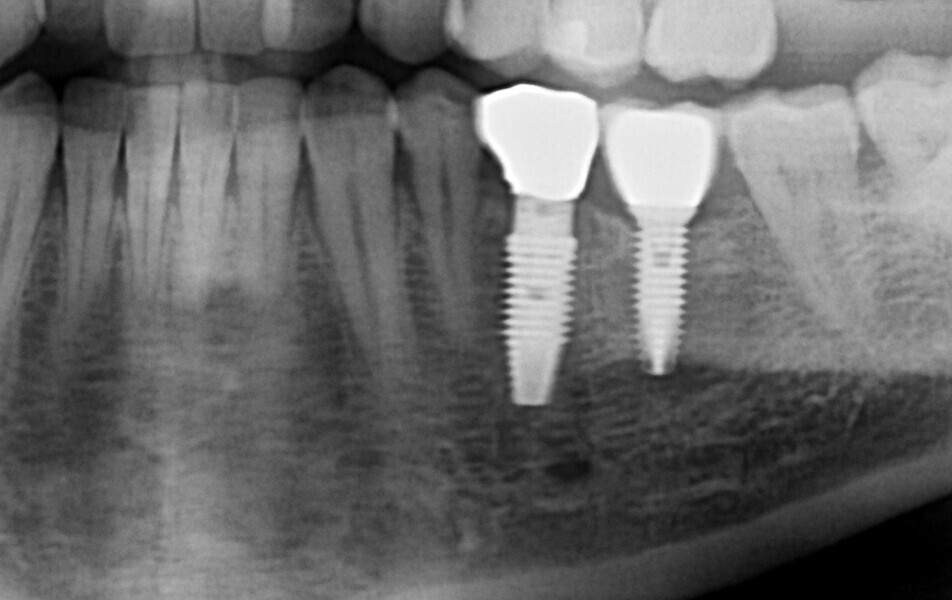

Fig. 9: Radiographic evaluation of the final crown.

Fig. 9: Radiographic evaluation of the final crown.

Fig. 10: Clinical situation one year after treatment.

Fig. 10: Clinical situation one year after treatment.

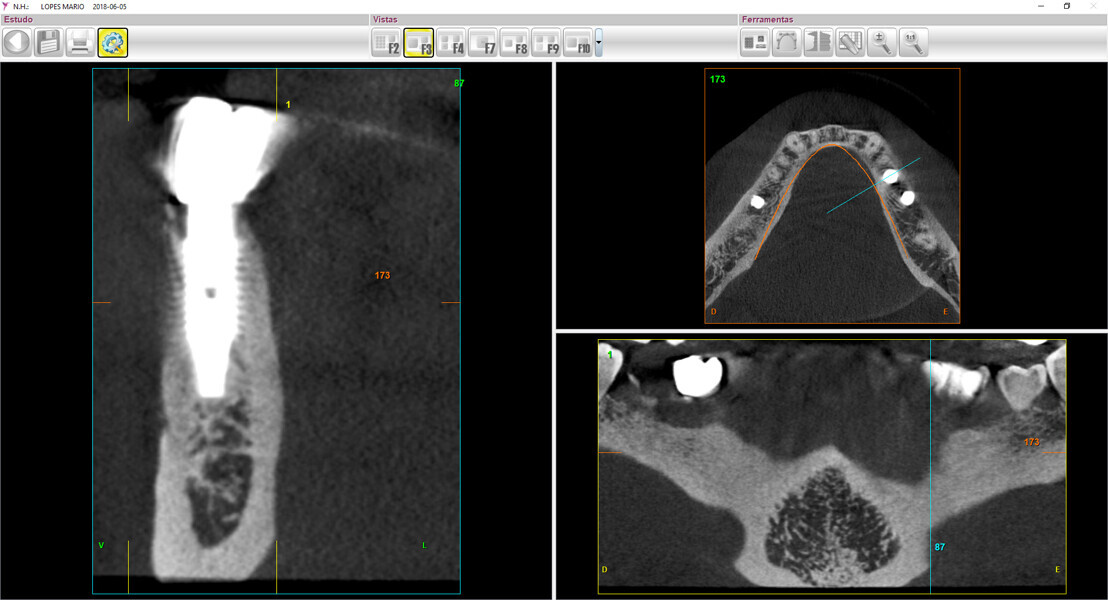

Fig. 11: The two-year follow-up post-op CBCT scan.

Fig. 11: The two-year follow-up post-op CBCT scan.

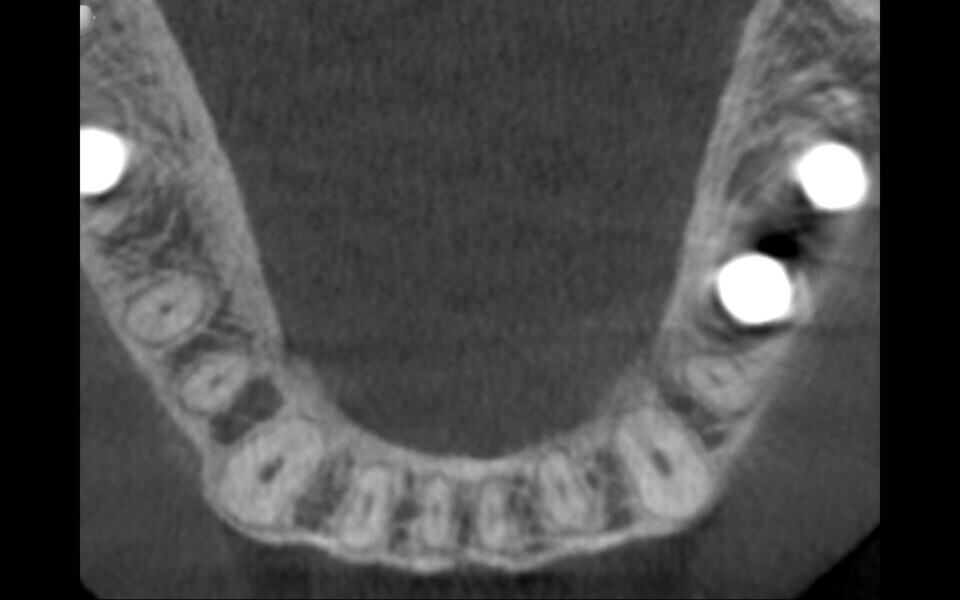

Fig.12a: The two-year follow-up post-op CBCT scan.

Fig.12a: The two-year follow-up post-op CBCT scan.

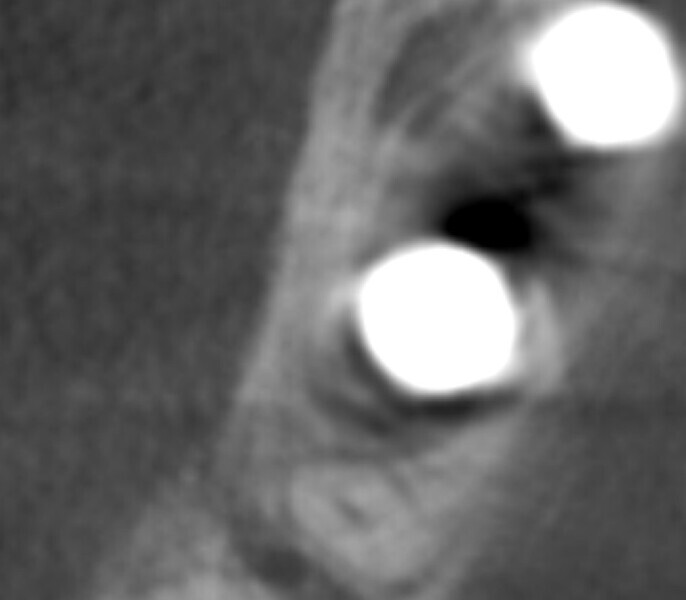

Fig. 12b: The two-year follow-up post-op CBCT scan.

Fig. 12b: The two-year follow-up post-op CBCT scan.

Fig. 13: Clinical situation two years after treatment.

Fig. 13: Clinical situation two years after treatment.

Fig. 1a: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 1b: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 1c: Initial situation: apical radiograph (a), intra-oral view (b) and CT scan (c).

Fig. 2: Sectioned root.

Fig. 3: Implant without intermediate abutment.

Fig. 4: Implant with intermediate abutment.

Fig. 5: The gap distance between the implant and the SS was filled solely with Endoret.

Fig. 6: Design of the CAD/CAM crown.

Fig. 7: Design of the CAD/CAM crown.

Fig. 8: Installation of the final restoration.

Fig. 9: Radiographic evaluation of the final crown.

Fig. 10: Clinical situation one year after treatment.

Fig. 11: The two-year follow-up post-op CBCT scan.

Fig.12a: The two-year follow-up post-op CBCT scan.

Fig. 12b: The two-year follow-up post-op CBCT scan.

Fig. 13: Clinical situation two years after treatment.
