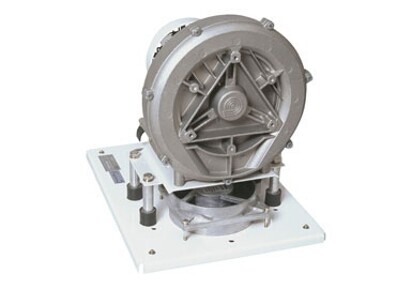

DO 2.1

Dental suction machines

Dental suction pump EKOM of the line DO 2.1 serve as a source of underpressure for dental appliances. It can be used for all types of dental units equiped with a suction unit (i.e. – a holder with hose, end-connectors and the separator ).
The suction pump is activated by an operating voltage (24V/0,1A DC/AC) or by turning-on of the switch in variant “T”.

Dental suction units are made accordingly for the purpose in the following versions:

DO 2.1, DO 2.1-10 – stationary dental suction unit in a soundproof box – it serves as the source of vacuum for the dental chair fitted with a pneumatic control module. The suction unit will start automatically after receiving a signal from the chair – by a 24V AC/DC connection between the chair and suction unit. Soundproof box is provided for silent operation.

DO 2.1 T, DO 2.1-10 T – model as at DO 2.1 above, switch from unit controlls suction pump by voltage from module „T“.

DO 2.1 Z, DO 2.1-10 Z – stationary dental suction unit without the soundproof box – it serves as the source of vacuum for the dental chair fitted with a pneumatic control module. The suction unit will start automatically after receiving a signal from the chair - by a 24V AC/DC connection between the chair and suction unit.

DO 2.1 TZ, DO 2.1-10 TZ – model as at DO 2.1 Z above, switch from unit controlls suction pump by voltage from module „T“.

Dental suction units above designated as - DO 2.1-10, DO 2.1-10 T - are different from the other ones only by their dimensions and weight, so that they complied with the design of compressors - DK50-10 S type.
