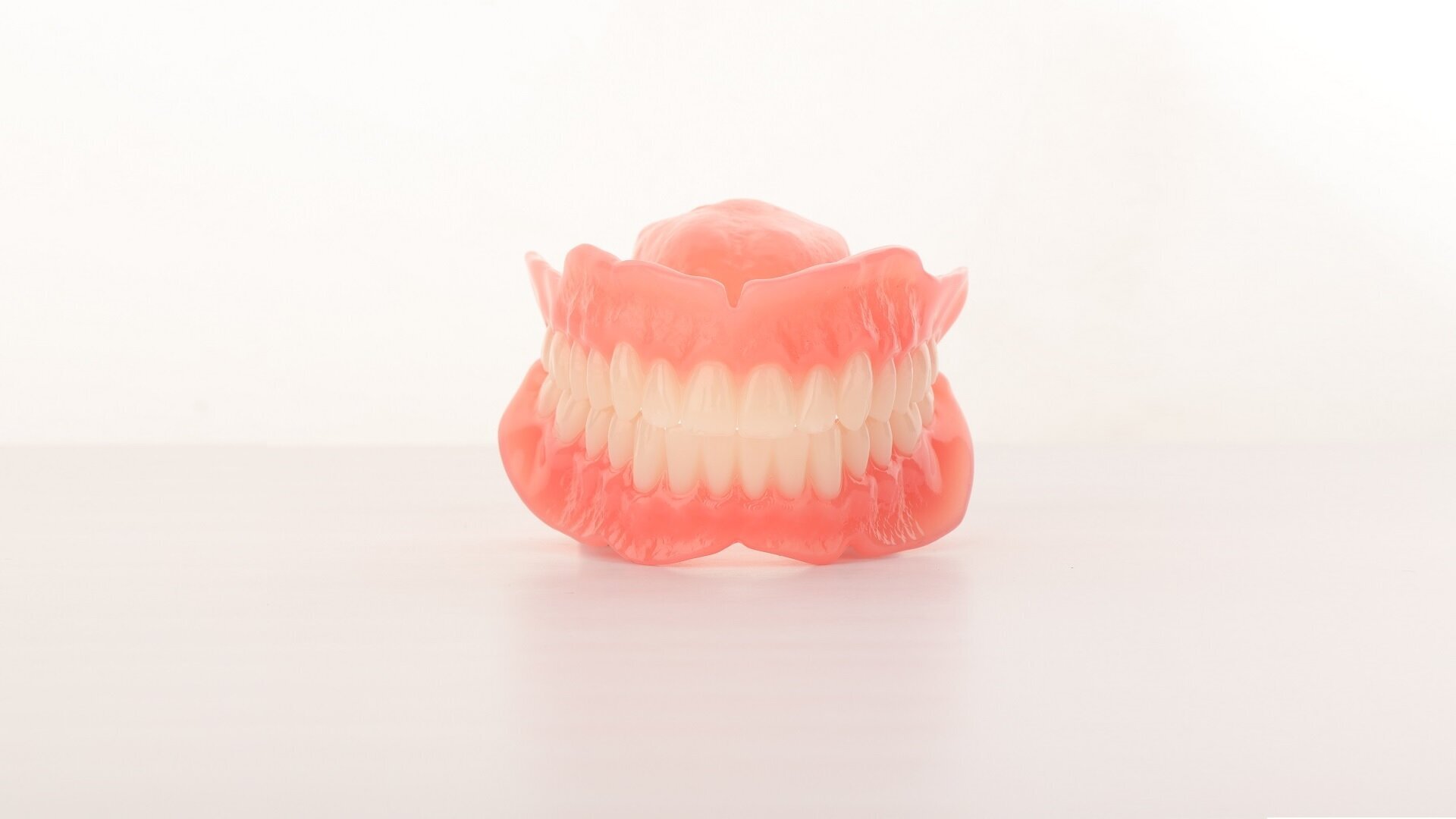

Recent advancements in denture software have facilitated the transition to a fully digital workflow, and dental professionals are invited to embrace the benefits of digital dentistry. (All images: Eric D. Kukucka)

Thu. 16. November 2023

save

Transitioning from analogue to digital dentures has significant benefits for oral healthcare professionals, laboratories and patients. The implementation of digital denture technology at Aspen Dental has created exciting opportunities for teams to become more effective, efficient and predictable, particularly regarding the reference denture workflow.

Fig. 1a

Fig. 1a

Fig. 1b

Fig. 1b

A brief history of dentures

Like most materials used in healthcare, denture materials have evolved profoundly over the last 300 years or so. For centuries now, people desiring to replace all their teeth have searched widely—often futilely—for biocompatible, comfortable, aesthetically appealing and long-lasting materials. Early dentures were more often than not embarrassing, unattractive and barely functional replacements of natural teeth.

In the pre-industrial world, before the 1800s, dentures were predictably primitive. Removable oral prostheses were often studded with genuine human teeth, sometimes reclaimed from cadavers. Otherwise, false teeth were typically made from natural materials like wood or animal bone. Some historical dentures were carved entirely from ivory, but they required a high-skill, time-intensive process only accessible to the wealthy.1 While these devices could be relatively convincing, they were held in place crudely (i.e. painfully and unreliably) with springs and weights and prone to staining and decay.2

Denture access finally democratised in the middle of the nineteenth century, when Charles Goodyear developed vulcanite, which quickly became the preferred material for fabricating dentures and held its position through the first third of the 1900s. Of course, polymethylmethacrylate (PMMA) has been the industry standard for denture base fabrication since its introduction in the late 1930s.3 Over the decades since, while manufacturing processes have been refined and new innovations have come and gone, PMMA has remained the most widely used denture material.

With the benefit of historical perspective, we can now look back on early devices and understand them as unsophisticated, unhygienic and otherwise limited. In a few years’ time, I contend we ought to similarly appraise removable prosthodontics from earlier this century.

The analogue to digital evolution

In 1994, the first digital denture study appeared in the International Journal of Prosthodontics.4 The paper introduced a novel process wherein the authors used a laser scanner to take denture impressions and 3D-printed a tooth and base contour jig, which allowed a denture to be fabricated using photopolymerising resin. While the ideas in the study were groundbreaking, 3D printing at the time was frankly not mature enough for clinical use, so the emerging digital dentures industry focused instead on CAD/CAM milling. A proof of concept detailing a technique for milling a denture duplicate out of wax was published in the Journal of Oral Rehabilitation in 1997.5

The first commercial digital denture was not produced until 2011—well over a decade later. Global Dental Science designed and fabricated the device, which it marketed as AvaDent Digital Dentures. AvaDent remains as an authority in the current digital denture system market, alongside options from competitors like Ivoclar, Dentsply Sirona, SprintRay, VITA Zahnfabrik (Vita Vionic) and Merz Dental (Baltic Denture System).6

Milled denture manufacturers developed and standardised PMMA pucks to place in computer numerical controlled mills. The first milled dentures still involved a significant amount of technical, hands-on work, as fabricators were able to mill the denture base only; they bonded carded denture teeth into the base one by one. Over time, dental laboratories developed improved systems which allowed a full set of teeth to be milled as a single piece. This piece would then be bonded with a separately milled base and returned to the mill for finalisation (Ivoclar’s oversize milling process). Today, the best milled denture systems fabricate one-piece monolithic dentures. 3D printing is now playing a greater role in denture fabrication owing to its already low cost and impressive scalability. In recent years, the development of novel photopolymers and sophisticated fabrication techniques has lowered the cost of entry to this exciting technology significantly, such that it has become a viable option for working laboratories. Today, properly equipped laboratories can print a denture base in a pink material which is then bonded to a carded denture teeth or a monolithic or segmented printed tooth material arch. Such systems include the Lucitone Digital Print Denture System (Dentsply Sirona) and the SprintRay High Impact Denture Solution.

The development of dedicated digital denture design software was another groundbreaking innovation. In some cases, commercially available software systems were proprietary suites custom-designed for digital denture fabrication (e.g. AvaDent Connect). Elsewhere in the industry, leading companies like Ivoclar use 3Shape-built specialised modules to extend the capacities of pre-existing dentistry design software.

The varied benefits of digital dentures

The tech industry favours the word “disruption” to describe paradigm-shifting changes in methodologies—and I’ve been guilty of using it myself. Lately, I find it more productive to shift my focus away from how digital dentures destroy old ways of doing work and instead foreground how digital dentures actively benefit clinicians, patients and laboratories alike.

Many leading clinicians are already taking advantage of digital technology, which makes design and prostheses infinitely reproducible. In basic terms, modern digital dentures replace error-prone plaster moulds with precise computerised data sets, allowing sufficiently trained dental professionals to scan a patient’s mouth or physical impressions or casts, transform them into computerised 3D renderings and initiate a precise CAM process at the push of a button—all while improving a denture’s aesthetic dimensions and fit, if a patient so desires.

Digital modalities simplify several potential points of friction in the reference denture workflow. The analogue reference denture workflow is popular in part because it condenses clinical steps and allows clinicians to use past experience as indicators of complexity, measurably improving predictability.7 However, clinicians using conventional laboratory techniques have often been unable to accurately reproduce complex existing dentures.8 Importantly, for inexperienced clinicians, digital workflows mitigate the intimidation factor that can accompany complete denture therapy in general. With traditional methodologies, a single mistake can send a clinician back to square one; this reality generates a significant fear factor. Because digital workflows preserve patient records perfectly, clinicians gain peace of mind, allowing them to do better work unencumbered by trepidation.

In almost all cases, digital denture workflows require fewer and shorter appointments—including postoperative visits.9, 10 While the advantages of reduced in-office hours should be obvious to clinicians, we must not overlook the potentially profound benefits to patient access. Statistically, patients requiring removable complete dentures are disproportionately likely to have complex medical profiles and/or difficult socioeconomic circumstances. Specifically, they are less likely to have private transport, more likely to experience mobility issues and less likely to live near a dental practice. As a general rule, we should not take these patients’ ability to come into the office for granted.

Patients also benefit from digital dentures’ greater degree of precision (meaning better fit) and superior functional quality. According to Drs Brian J. Goodacre and Charles J. Goodacre of Loma Linda University in California in the US, most rigorous comparisons of conventional denture base materials and the milled bases commonly used in digital workflows have concluded that milling produces greater flexural strength and the highest accuracy and trueness,11–15 allowing milled bases to respond more positively to accidental vdamage.

Across-the-board outcomes are likely to improve further as future generations of dentists and technicians enter the workforce familiar with these new workflows. According to Wendy Auclair Clark, clinical assistant professor in prosthodontics at the University of North Carolina at Chapel Hill in the US, digital dentures are now an integral part of complete denture curricula at leading dental schools.

The digital reference denture technique

I have written and lectured extensively elsewhere on the reference denture technique, also called the “denture duplication workflow”. In the right hands, I believe that this seamless and technically and clinically integrated workflow delivers the greatest possible standard of predictable precision care and craft.

The increasingly popular technique is ideal for edentulous patients who are generally satisfied with their existing dentures at the end of their regular lifespan. In appropriate situations, the digital reference denture workflow provides technicians with a sophisticated digital record of a patient’s existing information, allowing clinicians to rehabilitate the patient more confidently, predictably and precisely than would otherwise be possible.

Using traditional methods and materials, reproducing an existing handcrafted denture within acceptable limits—never mind perfectly—is laborious. As I am sure you know, the final quality of an analogue denture is determined largely by the hand–eye coordination and motor dexterity of the person fabricating it. The risks of human error are significant and unavoidable.8

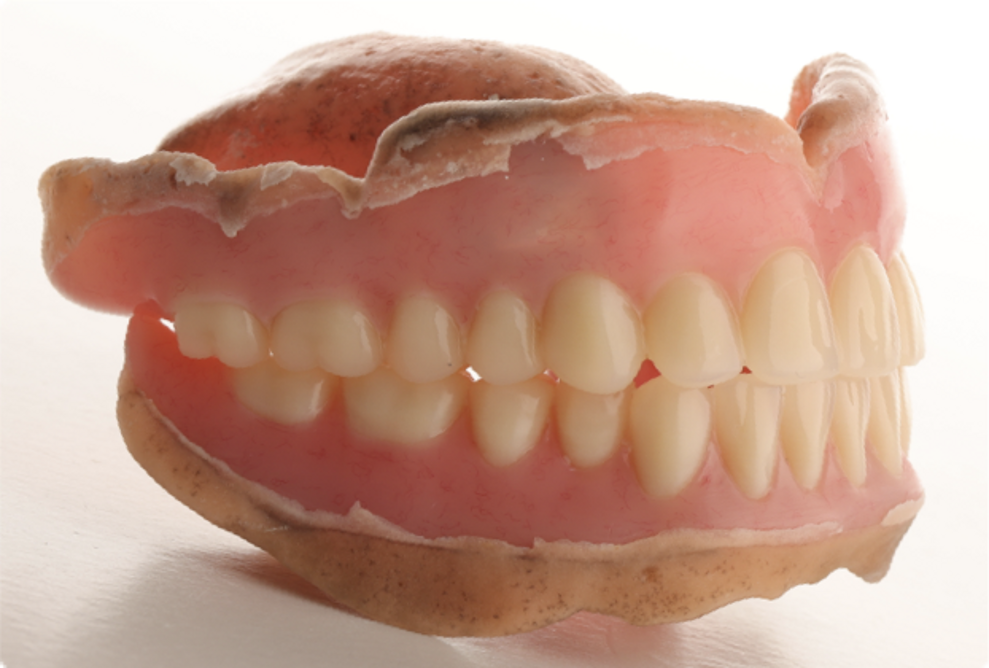

Fig. 2

Fig. 2

Clinical case

An 80-year-old male patient presented for prosthodontic evaluation and replacement dentures (Figs. 1a & b). His existing maxillary and mandibular complete dentures were five years old and lacked retention and stability. The peripheral border extensions of both the maxillary and mandibular dentures were under-extended, and there was an extensive increase in vertical dimension of occlusion (VDO; Fig. 2). The patient was not pleased with the appearance of his dentures, as they displayed a reverse curve smile and excessive gingival tooth display (Fig. 3). At the approximate desired VDO, the patient showed adequate inter-arch space and exhibited Prosthodontic Diagnostic Index Class 2 edentulous arches.14 After a thorough explanation of all treatment options and their objectives and limitations, the patient consented to treatment of the edentulous arches utilising a combination of traditional analogue and digital CAD/CAM techniques.

Clinical record acquisition

The existing dentures were evaluated for VDO, phonetics, aesthetics and peripheral border extensions. The existing dentures presented with under-extended flanges, which were to be captured during initial border moulding of the functional impression technique. If the existing denture is overextended, it is adjusted accordingly prior to taking the impression. It is important to notify the patient that you will be making modifications to the denture. You have the option to place a soft liner (COE-SOFT, GC) once the initial appointment is complete to stabilise the existing denture while the new one is being fabricated.

The existing dentures were utilised to take the definitive impressions. Border moulding movements were preformed through various functional movements of the patient’s muscles of mastication and facial expression. This was carried out on the periphery, utilising hydrophilic polyvinylsiloxane impression material (Virtual Heavy Body Fast Set, Ivoclar). Once the peripheral border movements had been captured, the excess border moulding material on the cameo and intaglio surfaces was removed to maintain a 3 mm roll internally and externally. The dentures were prepared to undergo a wash impression to capture the high affinity of detail of the alveolar ridge and soft tissue. This was also conducted using hydrophilic polyvinylsiloxane impression material (Virtual Light Body Fast Set, Ivoclar; Fig. 4).

Once set, the impression was completed with the jaws in centric relation utilising Blu-Bite HP Fast Set (Henry Schein). The centric relation record is evaluated or verified with clinical confidence that it is “the most retruded position of the mandible to the maxillae at an established vertical dimension which is repeatable and recordable” (Fig. 5).16

An extra-oral scan was performed with an intra-oral scanner (TRIOS 4 wireless, 3Shape) with both dentures in situ, assuring that the intaglio surfaces, cameo surfaces, peripheral borders and buccal surfaces of all teeth were captured.17 This ensured that we were providing all the necessary information for the designer to follow the existing tooth positions (Fig. 6).

The jaw relations can be captured intra-orally with the intra-oral scanner or extra-orally. Green stick compound or a leaf gauge may be used to capture the maxillo-mandibular relationship at the desired VDO if increase is required.

Fig. 3

Fig. 3

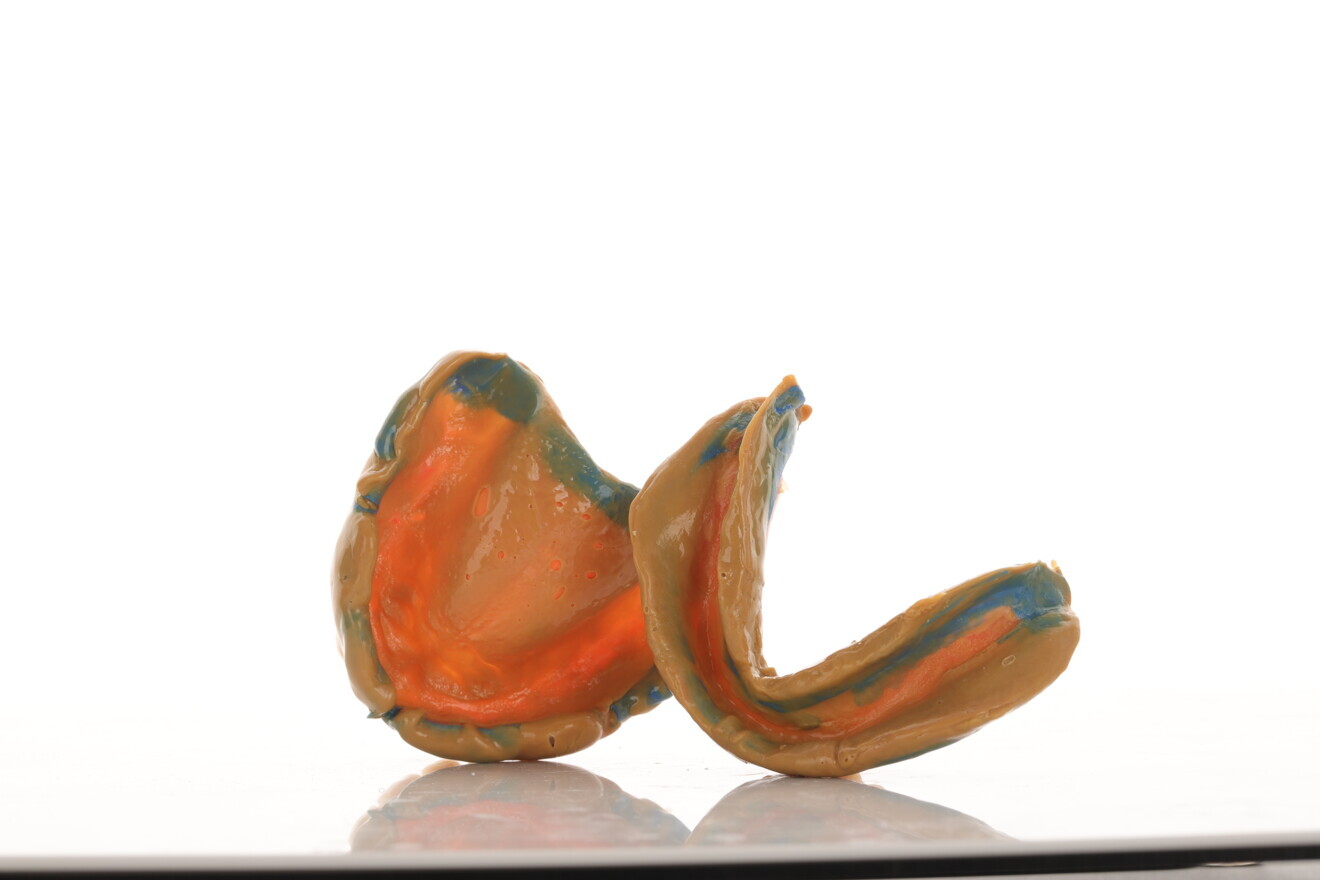

Fig. 4

Fig. 4

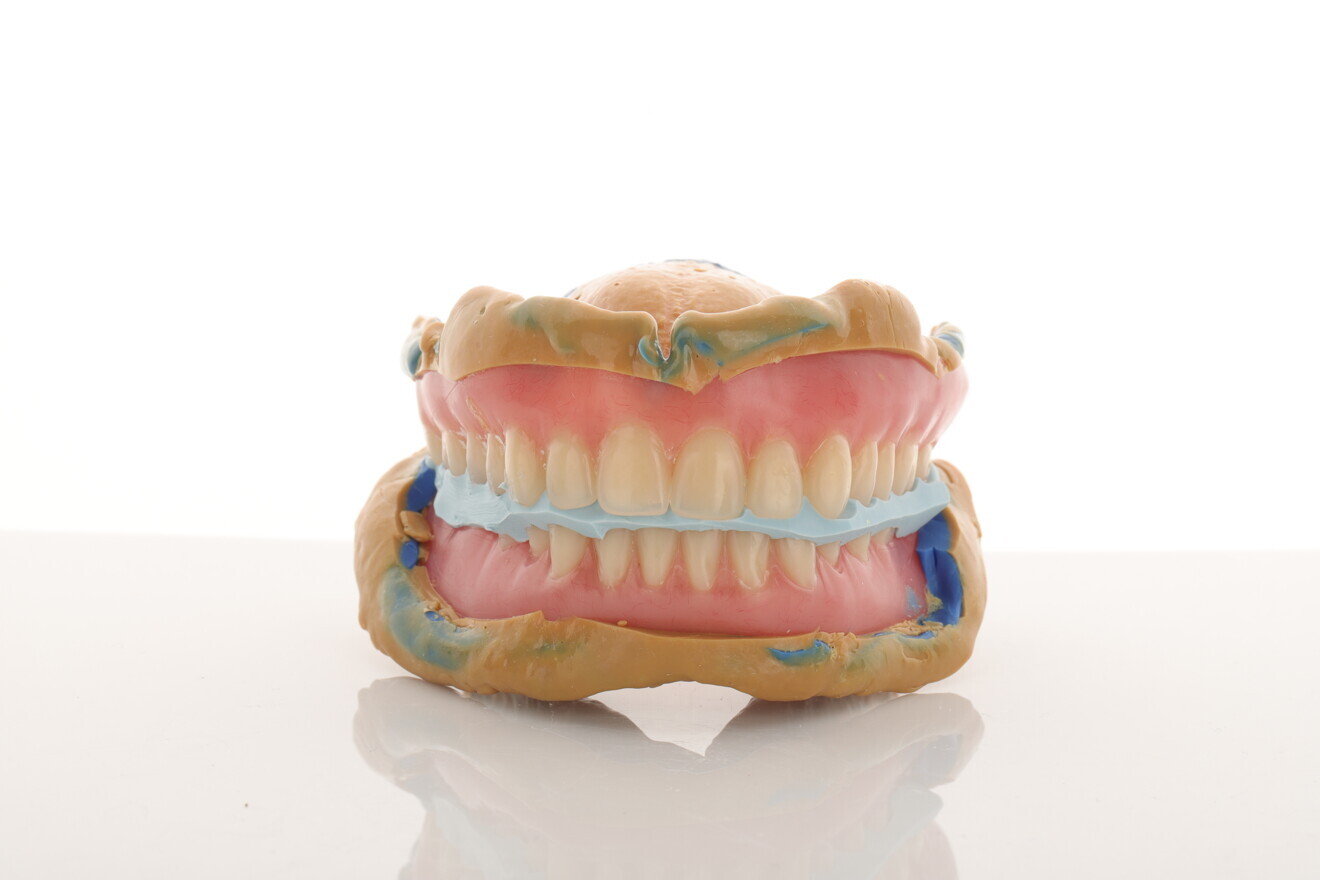

Fig. 5

Fig. 5

CAD using digital design software

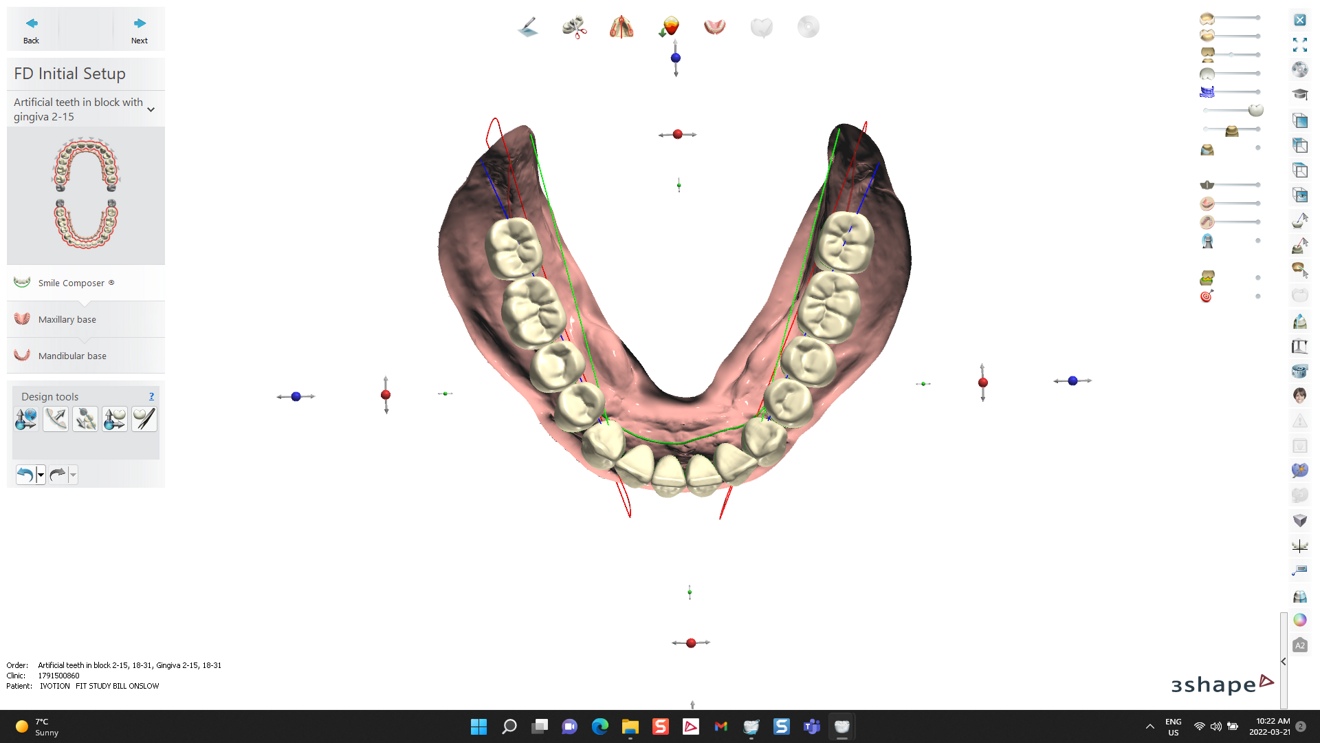

STL files from the initial appointment were sent to the laboratory for digital design and tooth arrangement. The Dental System 2023 software (3Shape) allows the ability to visualise the existing situation of the patient’s dentures (Fig. 7). The software also gives the designer the ability to evaluate the alveolarridge position and set teeth anatomically and physiologically according to the principles of tooth arrangement (Figs. 8 & 9).18, 19 The maintenance of the initial tooth positions supports the information from both the dentist and the current protheses, assuring that the changes for the desired tooth set-up of the new dentures are complete. The desired tooth moulds and shade as well as the denture teeth set-up are optimised at the desired VDO and set in a lingualised occlusal scheme.20 The design prototype (STL file) can be manufactured at a commercial laboratory or printed in-office.

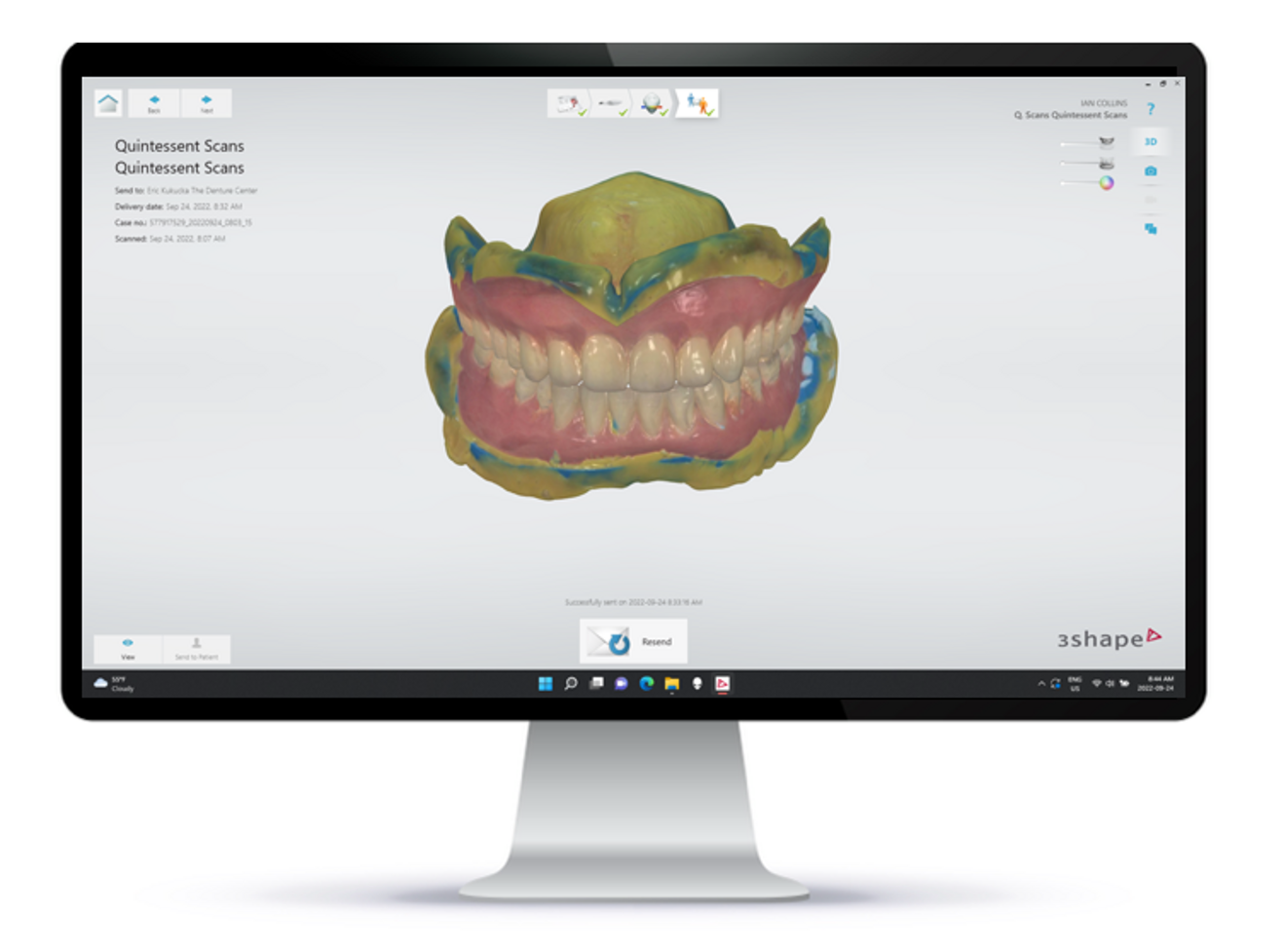

Fig. 6

Fig. 6

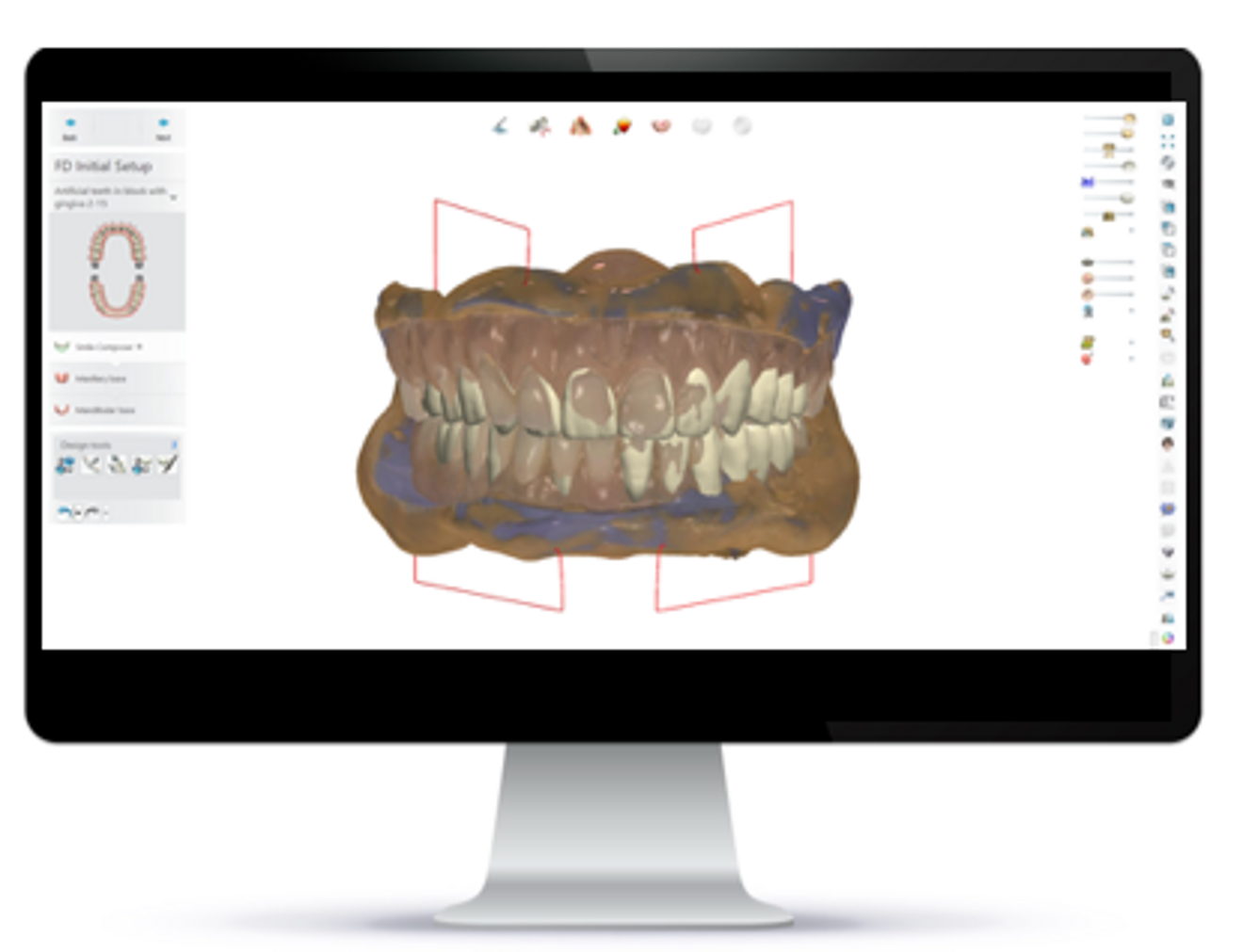

Fig. 7

Fig. 7

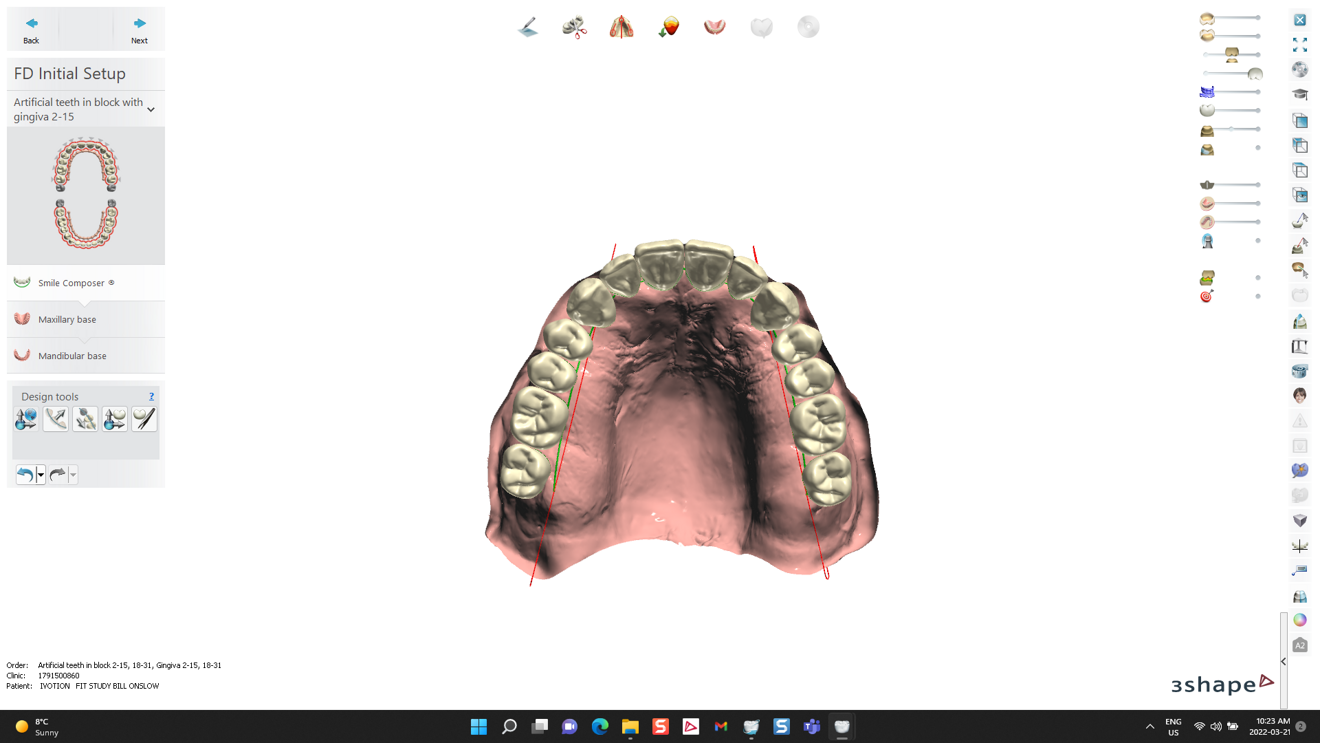

Fig. 8

Fig. 8

Fig. 9

Fig. 9

Monobloc try-in

A monobloc prototype was 3D-printed (SprintRay Pro95S) in resin (Try-In 2, SprintRay; Fig. 10) and used to check the peripheral seal and assess the aesthetics, phonetics and VDO of the occlusion (Figs. 11a & b). This step is considered optional, but is preferred if many aesthetic and/or functional changes are desired from the existing dentures.

Although changes in length, shape and occlusion can be made on the 3D-printed monobloc try-in, a limitation of this digital technique is the inability to move teeth during the appointment (compared with the traditional wax try-in). Modifications to the monobloc try-in can be conducted undergo a wash impression, as described in the first step, and be scanned to assure adequate peripheral seal and intaglio adaptation and either sent back to the laboratory or scanned and the scan sent to the laboratory.

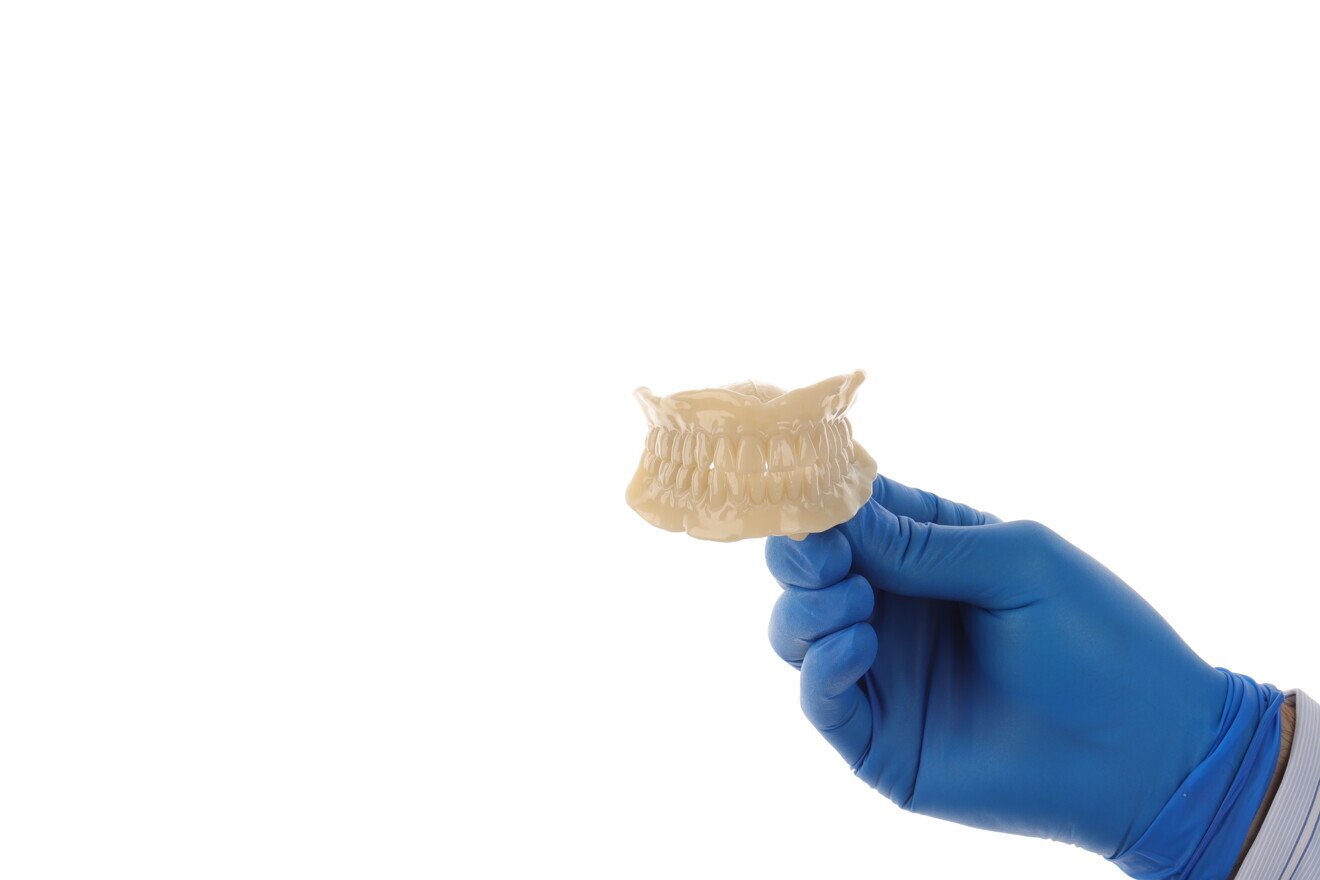

Fig. 10

Fig. 10

Fig. 11a

Fig. 11a

Fig. 11b

Fig. 11b

Manufacture and delivery

Manufacture

There are various methods of manufacturing digital dentures as mentioned. The Lucitone Digital Print Denture System offers a complete, validated and approved workflow for producing dentures (Figs. 12a–13c). Smart polymers in the base double in strength in response to body temperature with BAM! (body-activated material) technology, providing double the fracture resistance of commercially available denture base materials. The SprintRay High Impact Denture Base and High Impact Denture Teeth materials with NanoFusion, a ceramic infused resin, offer high resistance to fracture and staining and improved colour stability.

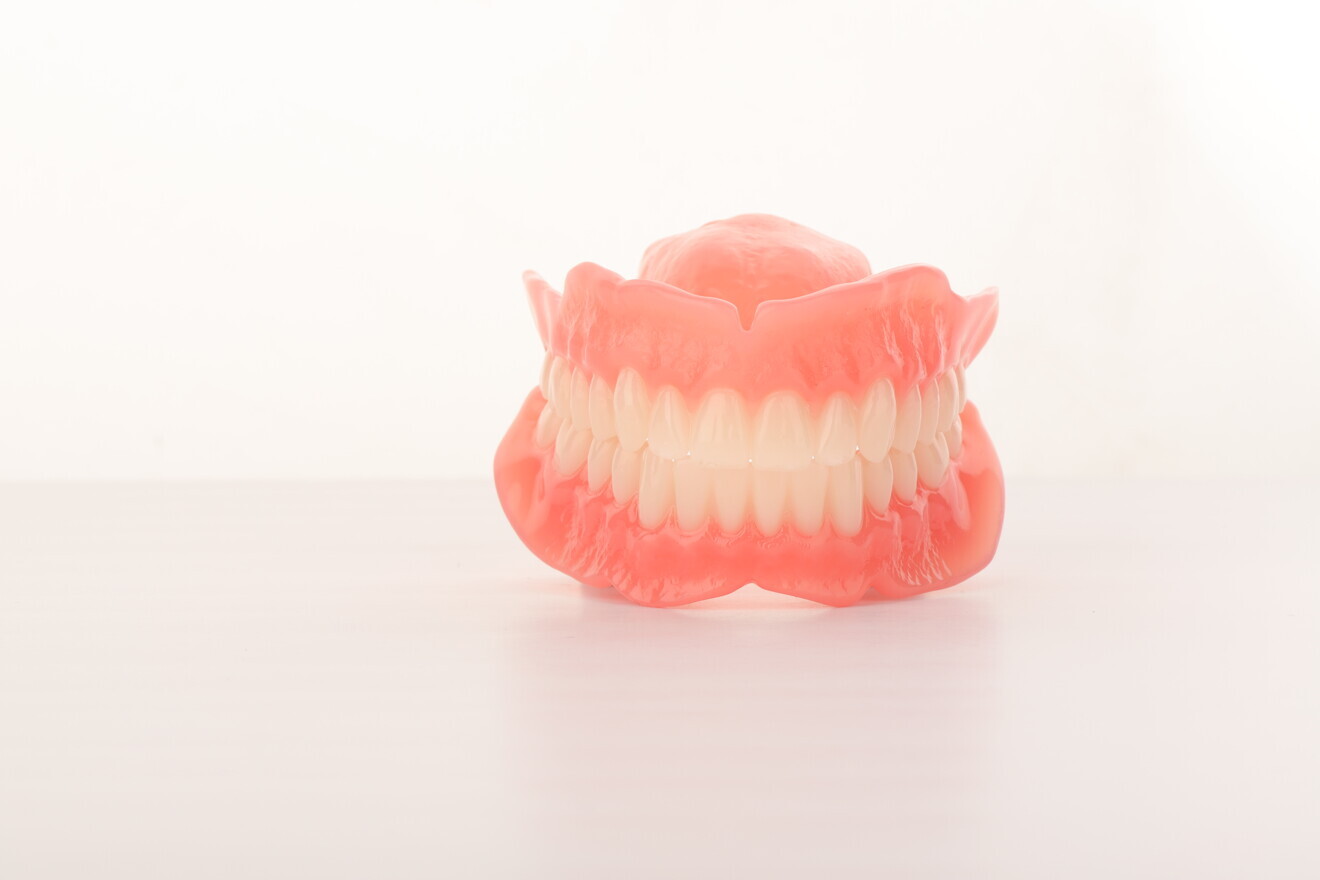

Fig. 12a

Fig. 12a

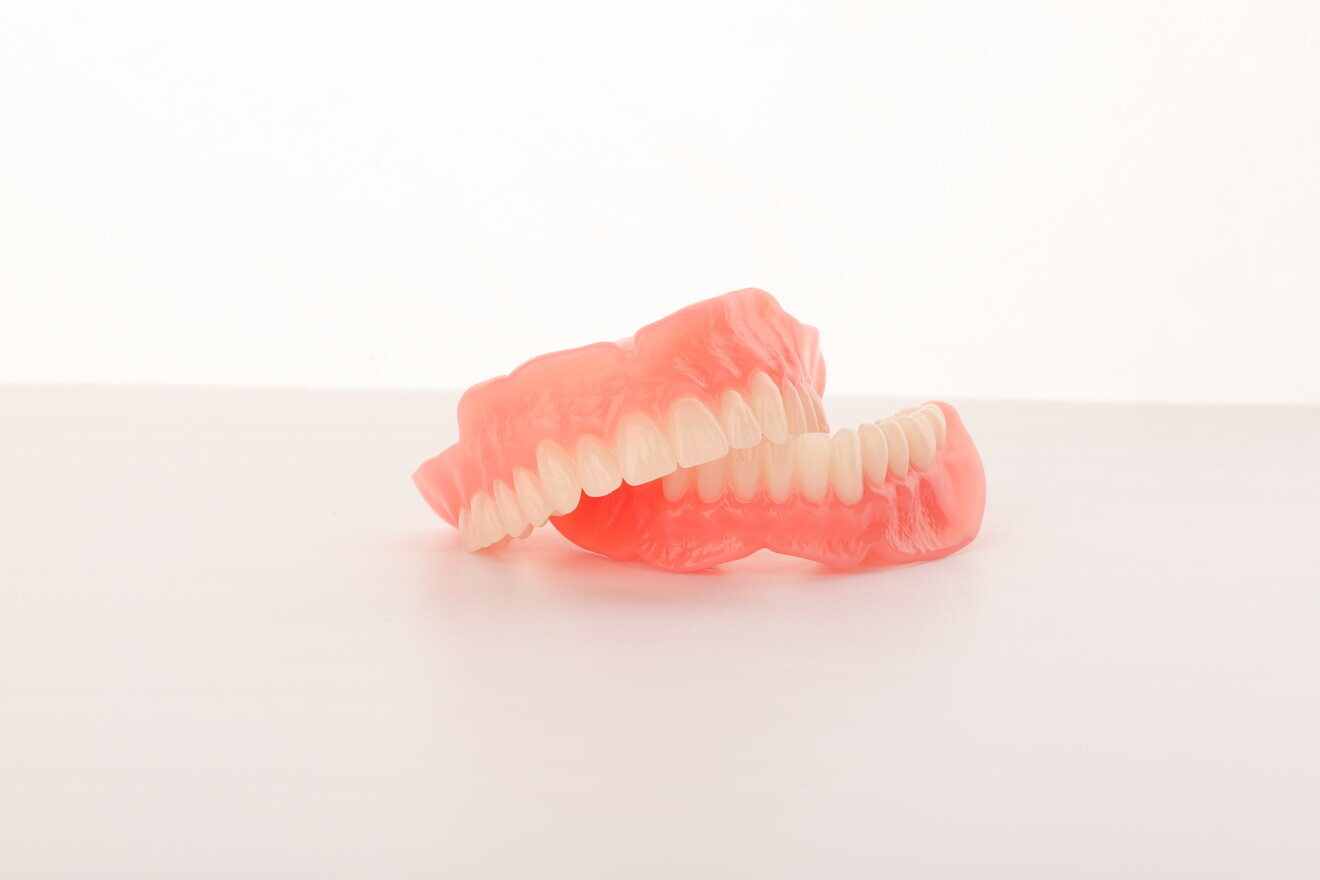

Fig. 12b

Fig. 12b

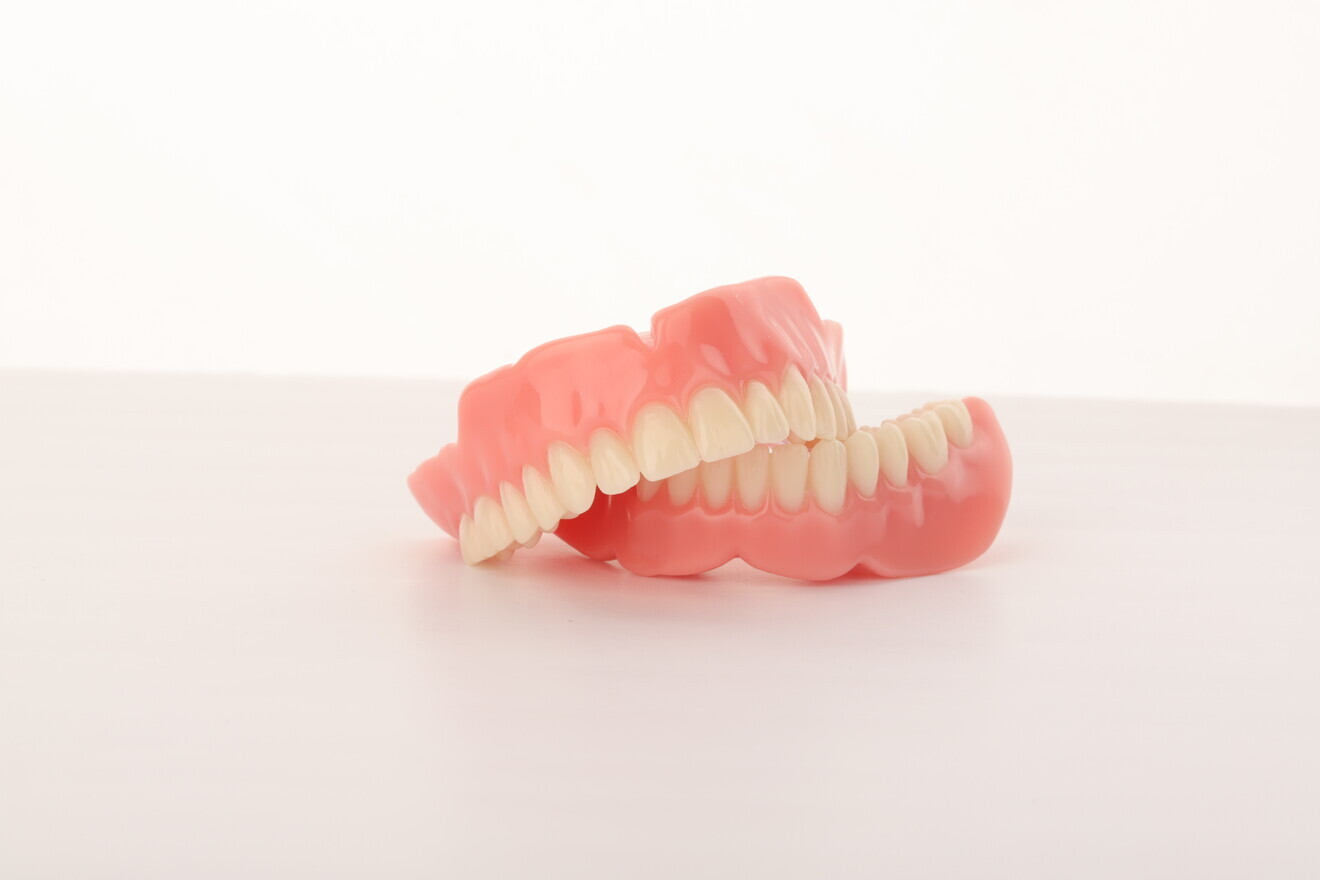

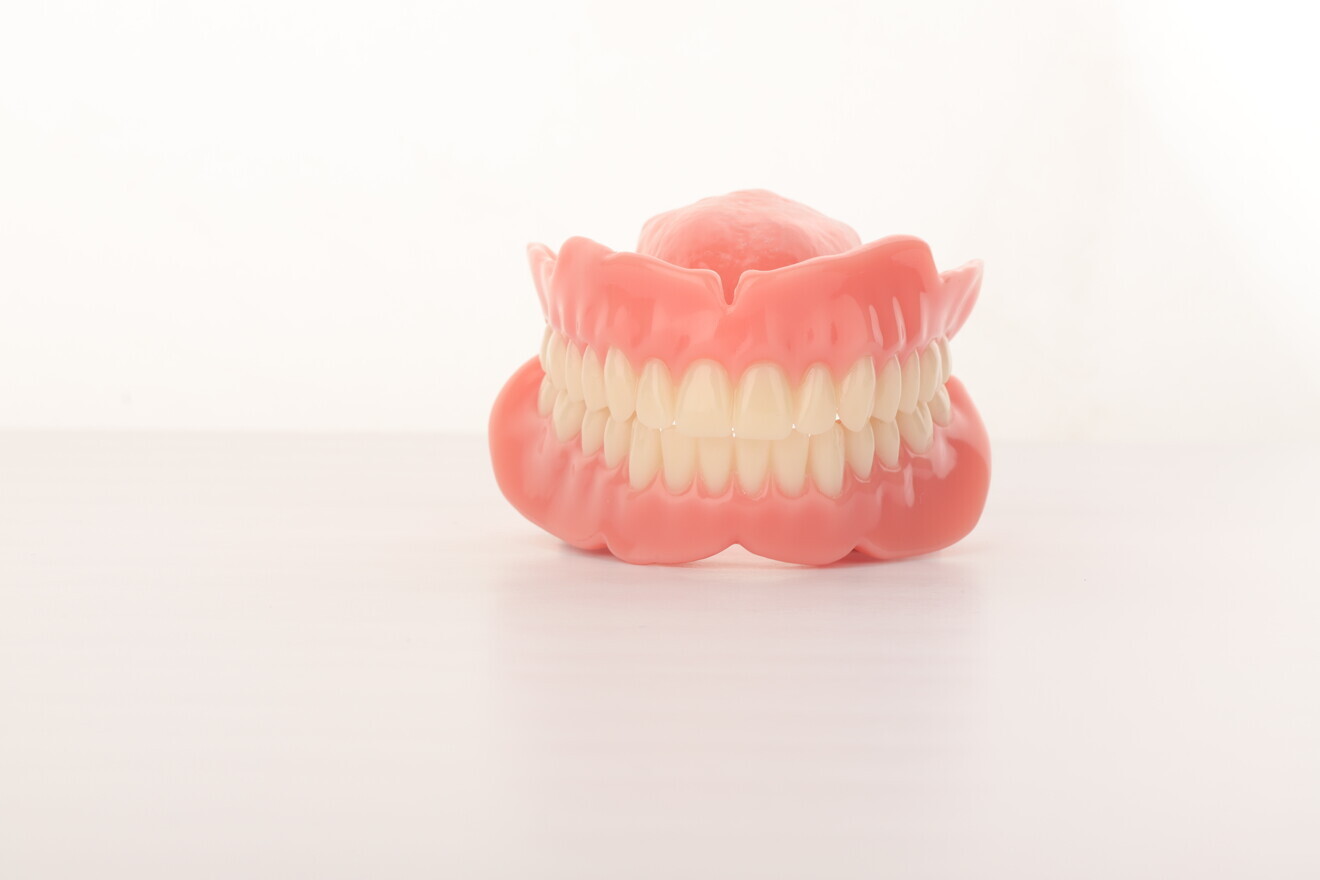

Fig. 13a

Fig. 13a

Fig. 13b

Fig. 13b

Delivery

The digital complete dentures were inserted and evaluated for efficacy, fit, form and function (Figs. 14a–c). Minimal adjustments to the intaglio surface were necessary when assessed using “Pressure Indicator Paste (white silicone spray; Keystone Industries).” Occlusion, stability and retention were evaluated and determined to provide superior improvements compared with the initial situation (Figs. 15–17). Oral hygiene instruction and recall maintenance were discussed with the patient.

Fig. 14a

Fig. 14a

Fig. 14b

Fig. 14b

Fig. 14c

Fig. 14c

Fig. 15

Fig. 15

Delivery

The digital complete dentures were inserted and evaluated for efficacy, fit, form and function (Figs. 14a–c). Minimal adjustments to the intaglio surface were necessary when assessed using “Pressure Indicator Paste (white silicone spray; Keystone Industries).” Occlusion, stability and retention were evaluated and determined to provide superior improvements compared with the initial situation (Figs. 15–17). Oral hygiene instruction and recall maintenance were discussed with the patient.

Conclusion

Digital denture workflows are effectively infinite in that multiple ways exist to use digital technology for the design and fabrication of removable dentures. This methodology gives both the clinician and the digital technician all the information necessary to fabricate a removable denture predictably. The ability to digitise such a rich data set is still in its infancy with respect to broad adoption; however, this approach is gaining much traction in the industry. The reference denture technique in conjunction with digital technology empowers us with a pathway to establishing a protocol with respect to a viable clinical and technical workflow that cohesively form a relationship that renders high satisfaction for clinicians, technicians and most importantly the patient.

Fig. 16a

Fig. 16a

Fig. 16b

Fig. 16b

Fig. 16c

Fig. 16c

Editorial note:

A complete list of references can be found here. This article was published in digital—international magazine of digital dentistry vol. 4, issue 3/2023.
