Clear aligner therapy has changed orthodontics incredibly in the last 20 years. The number of adult patients has dramatically increased. A survey by the American Association of Orthodontists stated that 4.37% of orthodontic patients in 1960 were adults, compared with 28.31% in 2016—almost seven times higher.¹ A survey analysis on the motivation and behaviour of adult orthodontic patients found that 70.4% had undergone treatment for aesthetic reasons and 41.7% for correction of malocclusion, and that 67.7% of the adult patients were treated with aligner therapy.¹ Another survey found that the majority of orthodontists (93.13%) offered aligner therapy, which made up 24.17% of their annual orthodontic caseload.²

In modern orthodontics, aesthetic analysis of patients is carried out through macro-, mini- and micro-analysis of dental and facial aesthetics, as described by Sarver.³ Until now, planning in aligner therapy has generally been performed using a dedicated software program, in which tooth movements are planned on a 3D model. The effects of the tooth movements in terms of facial aesthetics could not be visualised though. Recently, the importance of achieving dental alignment prior to restorative treatment in order to enable minimally invasive restorations has been highlighted by Weinstein et al.⁴ Align Technology has introduced the new Invisalign Smile Architect software program that addresses all these aspects. This article will demonstrate a new restorative workflow that employs Invisalign Smile Architect to plan and execute an interdisciplinary case.

Figs. 1a–f: Initial situation. (a–c) Extra-oral and (d–f) intra-oral views. Extra-oral photos were taken with a smartphone through a dedicated App (Invisalign Practice App, Align Technology).

Figs. 2a–e: Intra-oral scan with iTero (Align Technology).

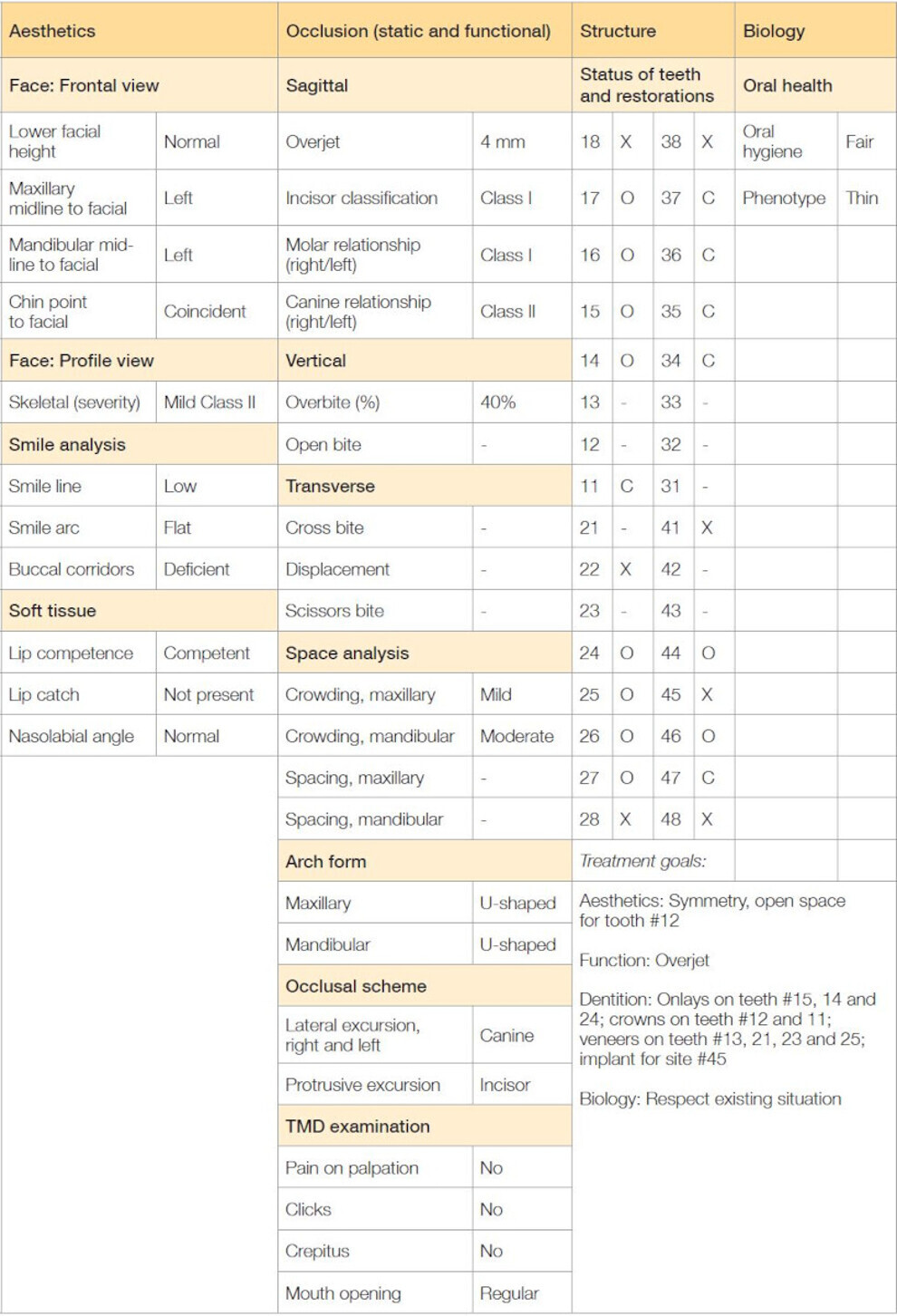

Table 1: Clinical assessment of the case according to the SAFE clinical protocol. O = restoration; X = missing; C = crown.

A 51-year-old patient came to our office to have the aesthetics of her smile improved. Clinical examination was completed, and calibrated extra-oral photographs and an intra-oral scan were taken (Figs. 1 & 2). Radiographic evaluation did not reveal any pathology. The clinical assessment employed the SAFE (stability, assessment, function, ethics) clinical protocol developed by Aulakh to systematically assess the clinical situation, draw up the treatment plan and define the final tooth position when orthodontic treatment is needed (Table 1).^{5, 6}

The main issue identified in this case was the peg-shaped maxillary right lateral incisor (tooth #12) and the missing maxillary left lateral incisor. To solve this, two treatment options could be considered: (a) open space for placement of an implant or bonded fixed dental prosthesis to replace the missing maxillary left lateral incisor and prosthetically restore tooth #12, followed by restoration of all aesthetic areas; or (b) open space for prosthetic restoration of tooth #12 and prosthetically transform the maxillary left canine (tooth #23) into a lateral incisor and the maxillary left first premolar (tooth #24) into a canine, followed by restoration of all aesthetic areas. In this case, there were favourable factors for the second option: a low smile line, central incisors with large dimensions and a deviation of the midline (consequent to agenesia) of < 4 mm, which is considered acceptable by patients (Fig. 3).⁷ Therefore, aligner therapy using Invisalign Go Plus (Align Technology) was proposed to create adequate restorative space. Invisalign Go Plus allows movement from the right first molar to the left first molar in both arches within defined treatment limits.

The intra-oral scan and photographs were sent to Align Technology, requiring the use of Invisalign Smile Architect. Invisalign Smile Architect runs ClinCheck, the software used to plan tooth alignment, adding several tools. The software automatically superimposes the 3D model on the 2D photographs of the patient smiling broadly, making it possible to visualise the impact of the final tooth alignment on the patient’s face. Facial lines, as applied in classical complete denture treatment, help relate the position of the teeth to key aesthetic references, such as the facial midline, smile line and rest position. These lines are highly valuable for determining the final tooth position from an aesthetic perspective and can be immediately assessed and adjusted using 3D Controls—interactive tools that allow precise changes to tooth position, angulation and attachments—during modifications in the ClinCheck software. Facial lines are added by the software, but users can modify their position whenever they want. This was done in this case, for which it was decided to accept the deviation of the midline (Fig. 4).

Tooth alignment was planned to create space for tooth #12 and to improve both the increased overbite and overjet. Invisalign Smile Architect provides the possibility of creating a virtual wax-up of the planned subsequent restorations after alignment. In this case, it was fundamental to test the validity of the treatment option chosen and to verify that the space that would be opened for tooth #12 would be sufficient.

The transformation of tooth #23 into a lateral incisor and tooth #24 into a canine was simulated, along with a complete aesthetic rehabilitation of the anterior region (Fig. 5). Thanks to 3D Controls, the virtual wax-up was easily created and met aesthetic expectations while confirming the feasibility of the proposed treatment plan (Fig. 6). The final planned result was satisfying (Fig. 7). The plan was then shown to and discussed with the patient, to help her better understand the scope and the outcome of the treatment plan. It is important at this point to define and describe every step of the treatment, from the alignment to the restoration, to give a comprehensive overview of the therapy to the patient.

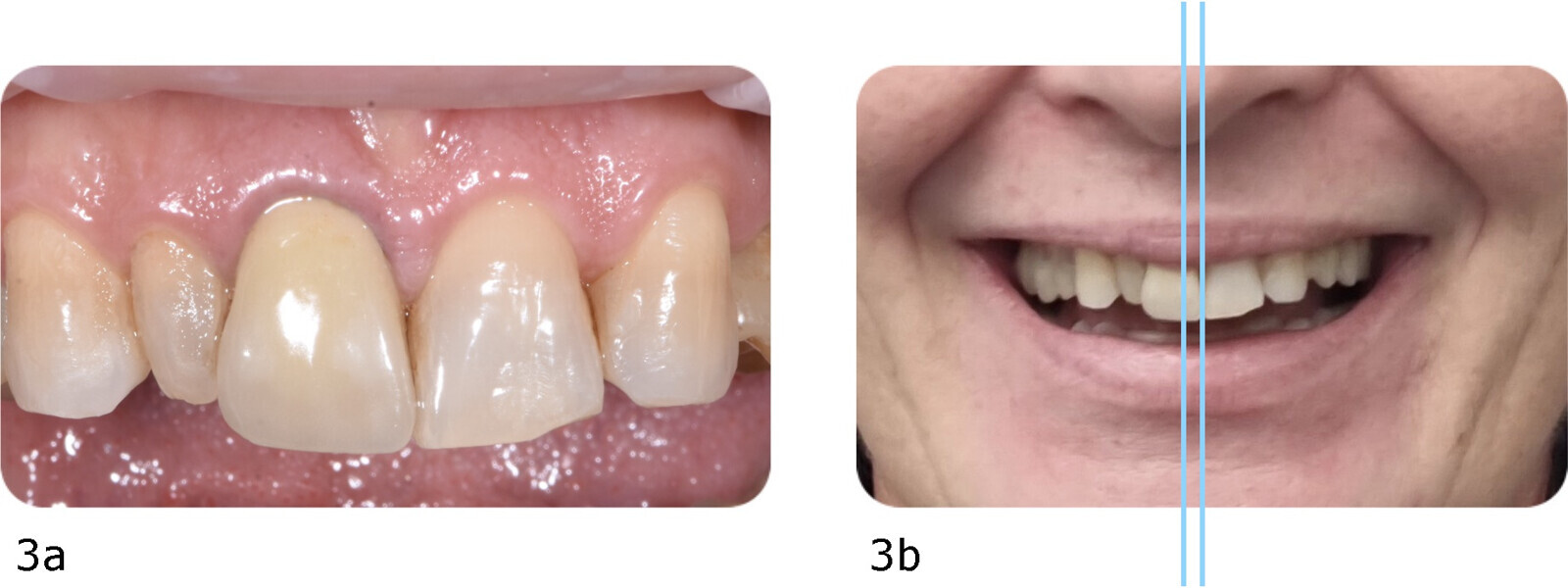

Figs. 3a & b: Favourable factors: (a) large central incisors and (b) midline deviation of < 4 mm.

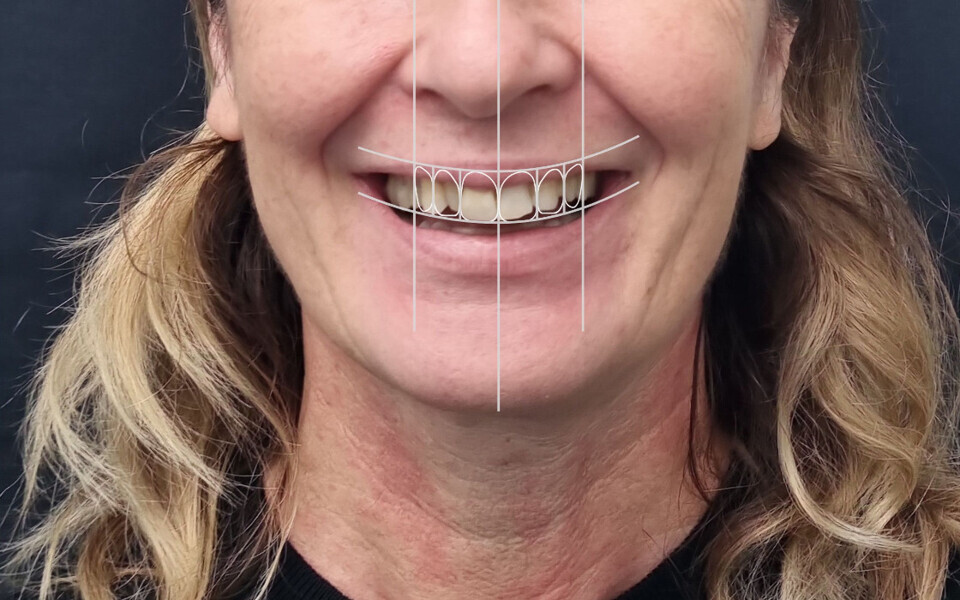

Fig. 4: Facial lines when assessing the initial situation. The deviation of the midline was accepted.

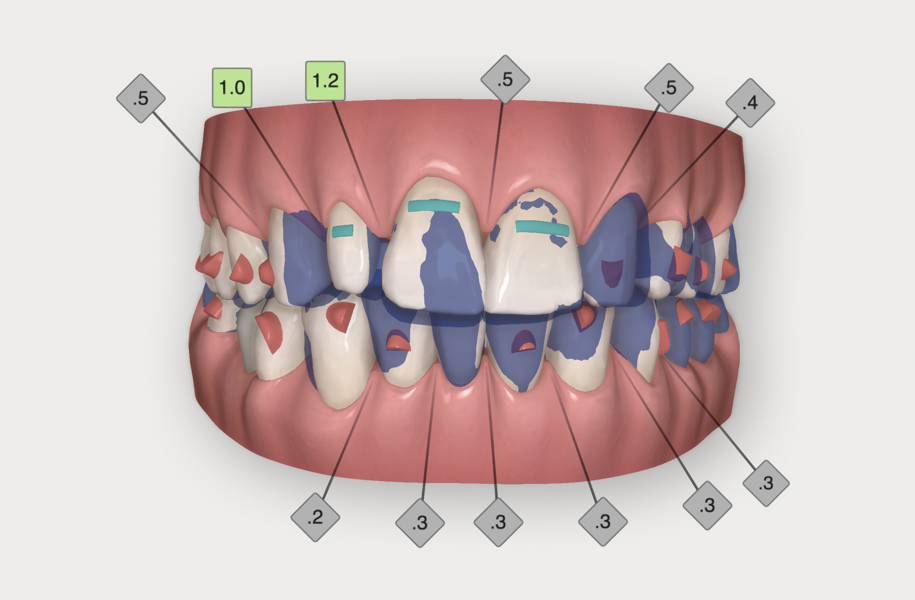

Fig. 5: ClinCheck with superimposition of the initial situation (in blue).

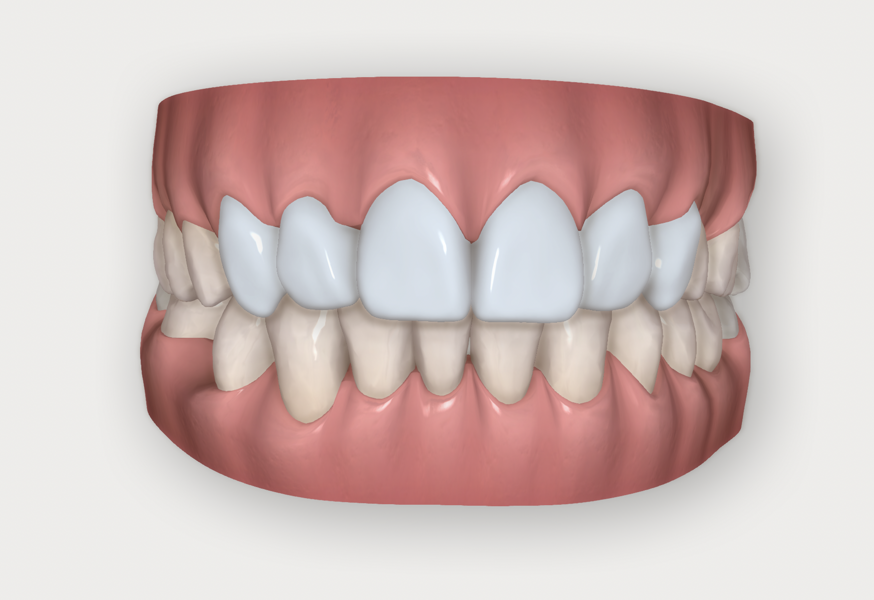

Fig. 6: ClinCheck with wax-up of the planned restorations.

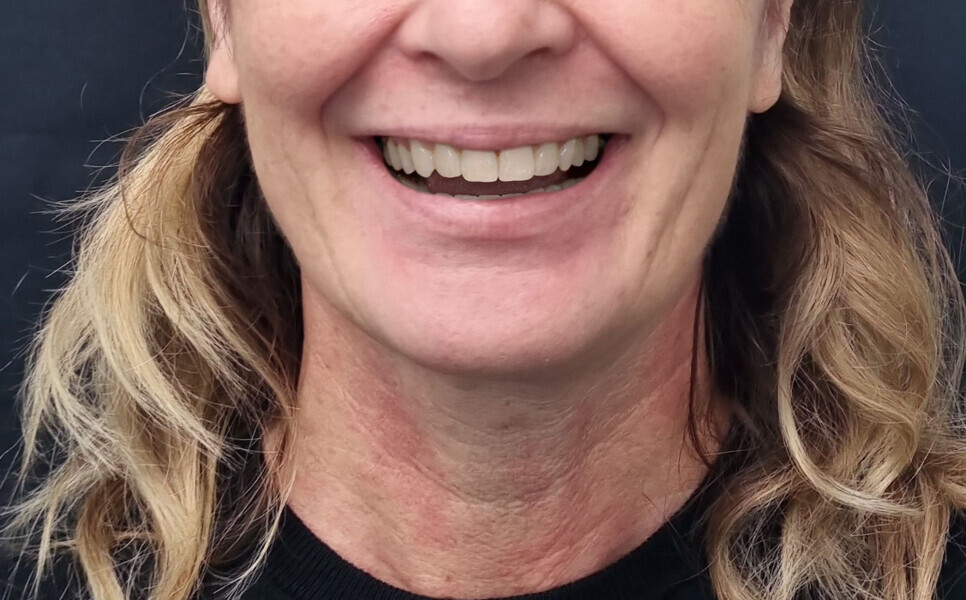

Fig. 7: Virtual simulation of the smile after the planned alignment and restorations.

After the patient had approved the treatment plan, the aligners were delivered, attachments placed and interproximal reduction performed as planned, using dedicated calibrated strips (FitStrip, Garrison Dental; Figs. 8 & 9). After 15 aligners (plus eight refinements), the desired tooth position was achieved (Fig. 10). A provisional restoration was placed on tooth #12 to maintain the space created, the old crown on the maxillary right central incisor (tooth #11) was removed and a new provisional restoration was placed (Figs. 11 & 12). The biologically oriented preparation technique (BOPT) was adopted to align the gingival margin with the maxillary left central incisor (tooth #21; Fig. 12).⁸

The patient was then ready for the final step of the treatment plan (Fig. 13). A new intra-oral scan and extra-oral photographs were taken and sent to the dental technician, along with the Smile Architect planning. It is possible to export the STL files of the wax-up together with the 2D simulation. This information is fundamental for better communication with the dental technician, who can better understand the case and perform a more detailed and coherent wax-up (Fig. 14). After discussion with the laboratory, the premolars were also included in the wax-up. The mock-up was then tested and approved (Fig. 15). Tooth preparations were done through the mock-up,⁹ an intra-oral scan was taken on the same day and the mock-up was reused as an interim restoration (Figs. 16–18). The definitive restorations were tested, approved and cemented (Figs. 19 & 20). The patient wore Vivera retainers (Align Technology) at night for retention.

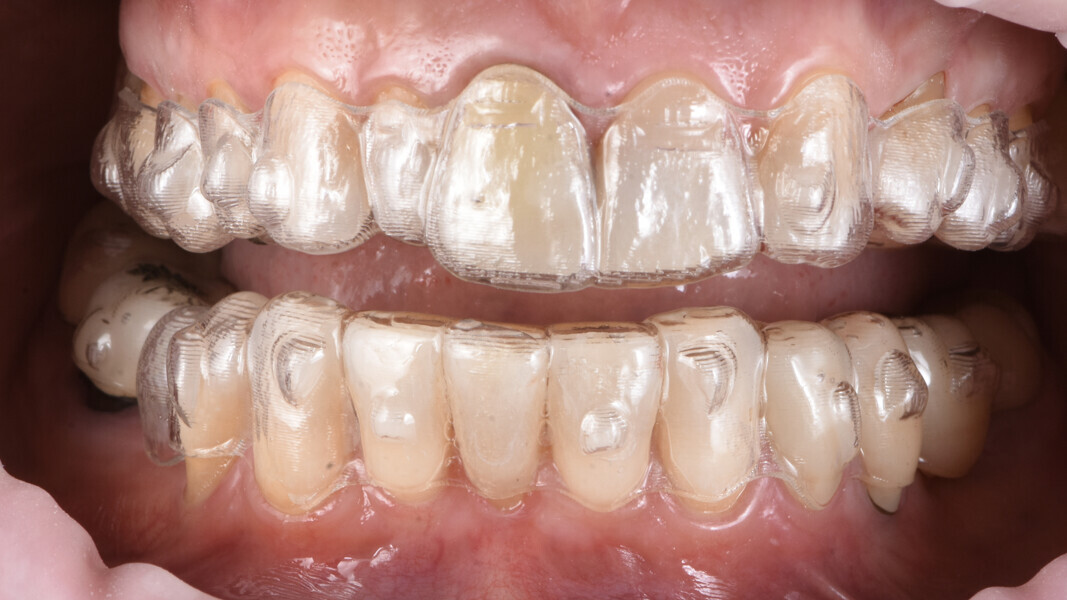

Fig. 8: Start of the Invisalign therapy.

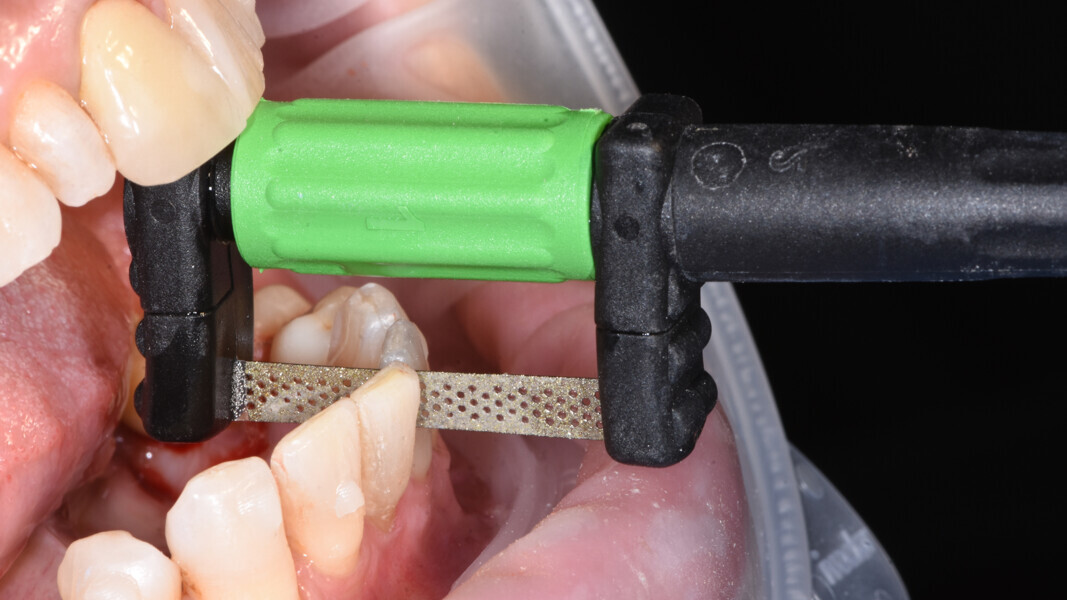

Fig. 9: Interproximal reduction with FitStrip.

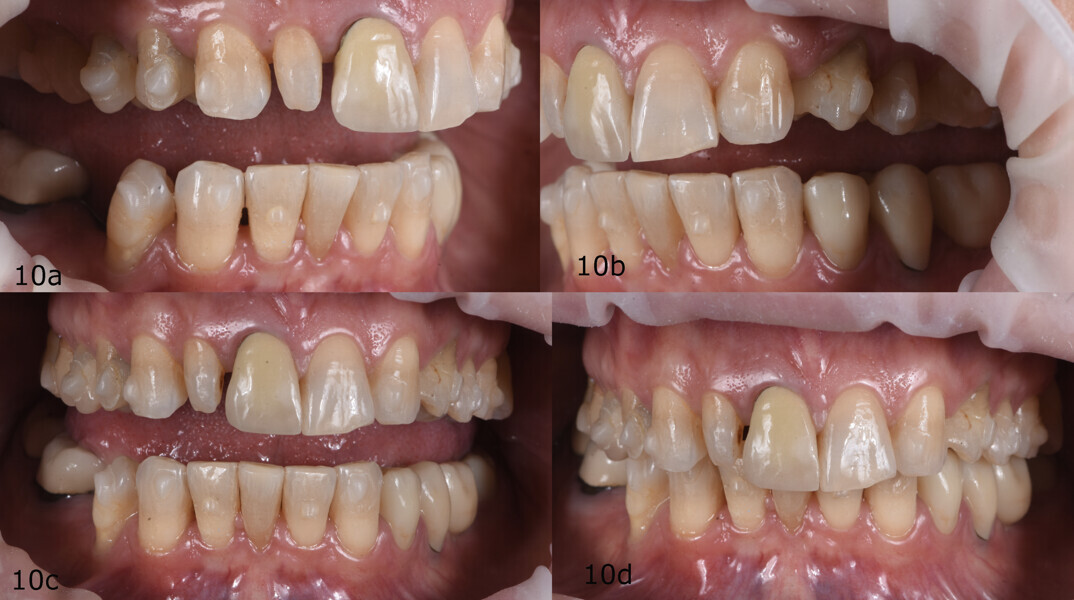

Figs. 10a–d: Intra-oral photographs after alignment.

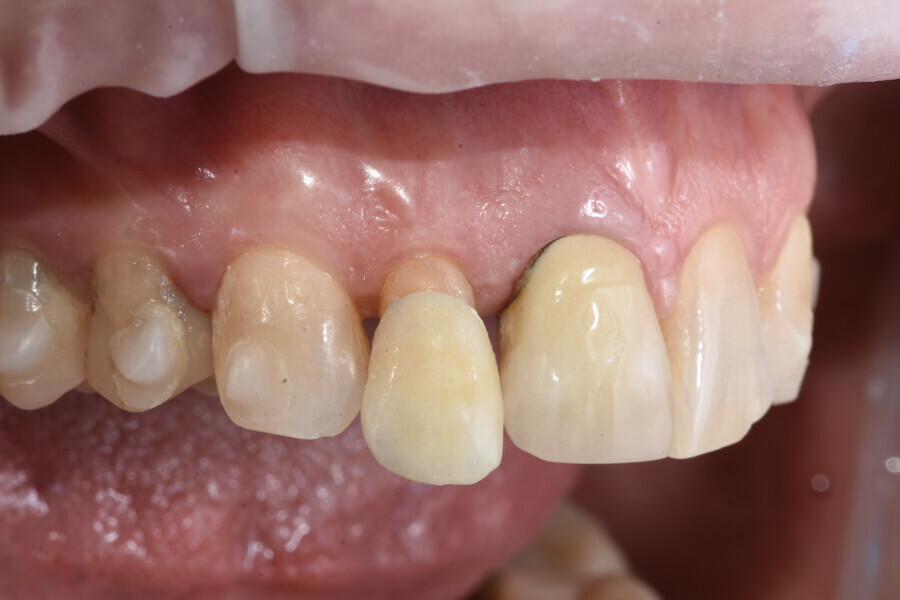

Fig. 11: Placement of the provisional restoration on tooth #12 to maintain the space.

Figs. 12a–d: Removal of the old crown on tooth #11, build-up and tooth preparation following the biologically oriented preparation technique.

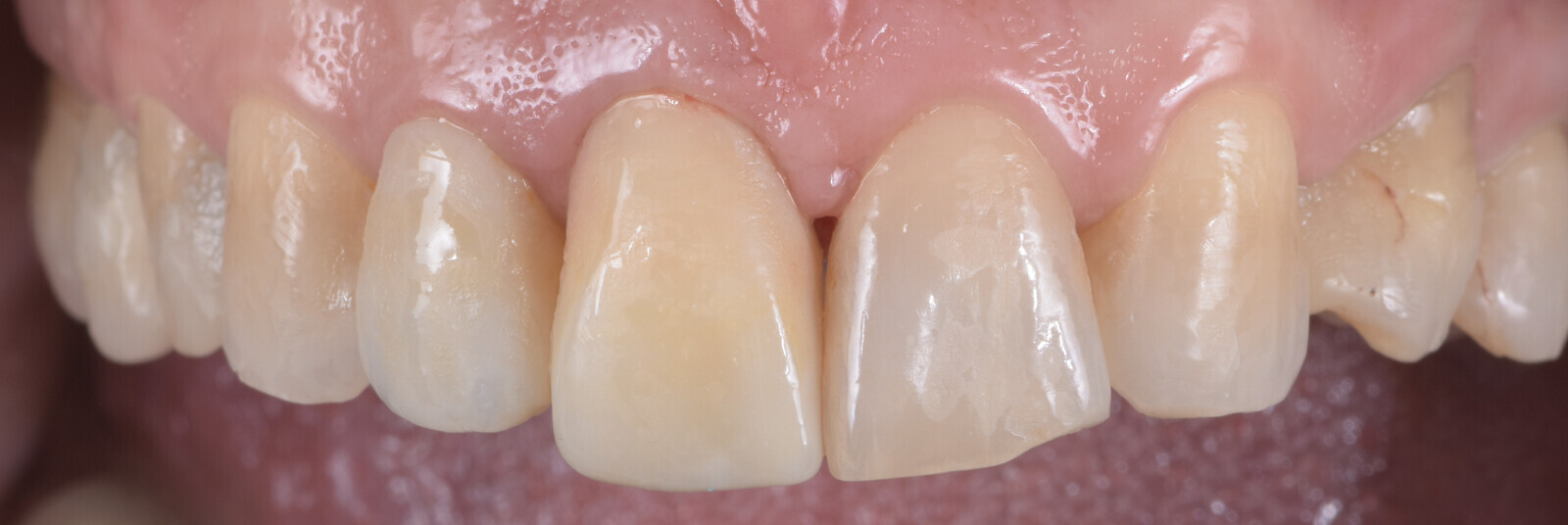

Fig. 13: Situation before the mock-up.

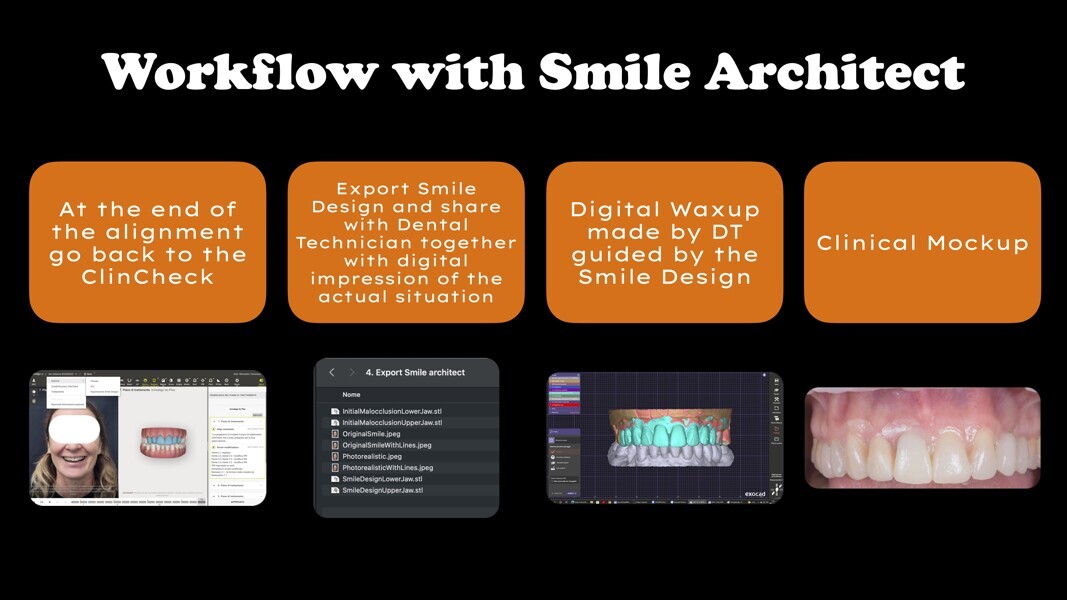

Fig. 14: Workflow with Invisalign Smile Architect for communication with the laboratory.

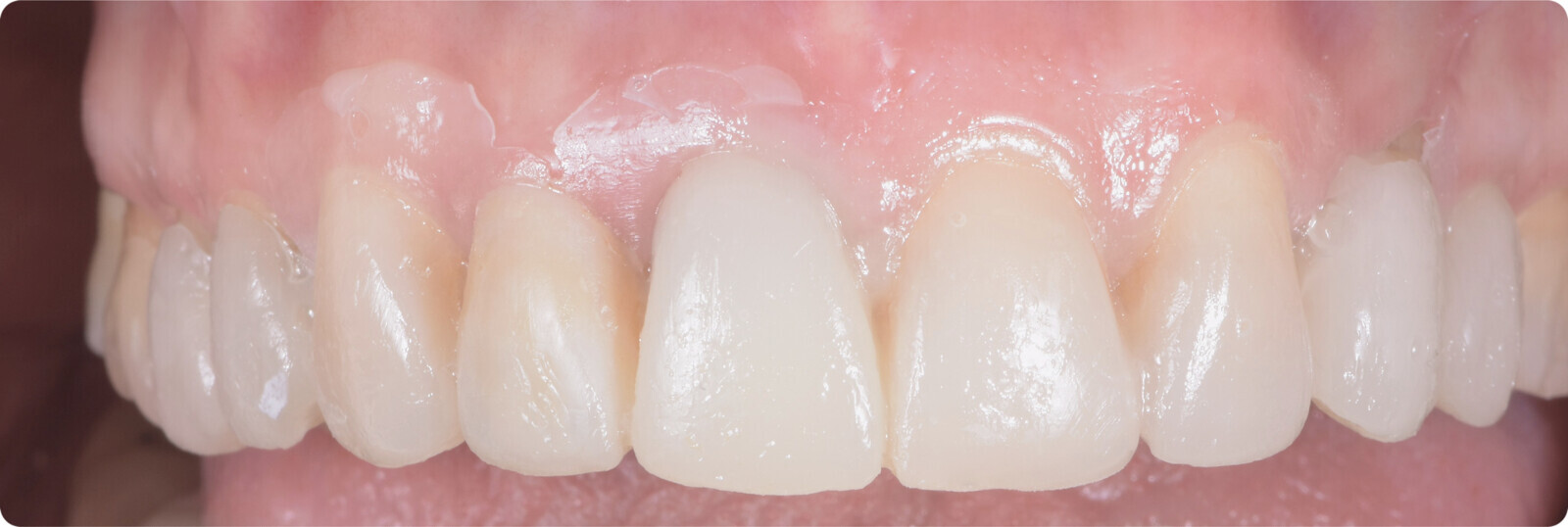

Fig. 15: Mock-up.

Fig. 16: Tooth preparation through the mock-up.

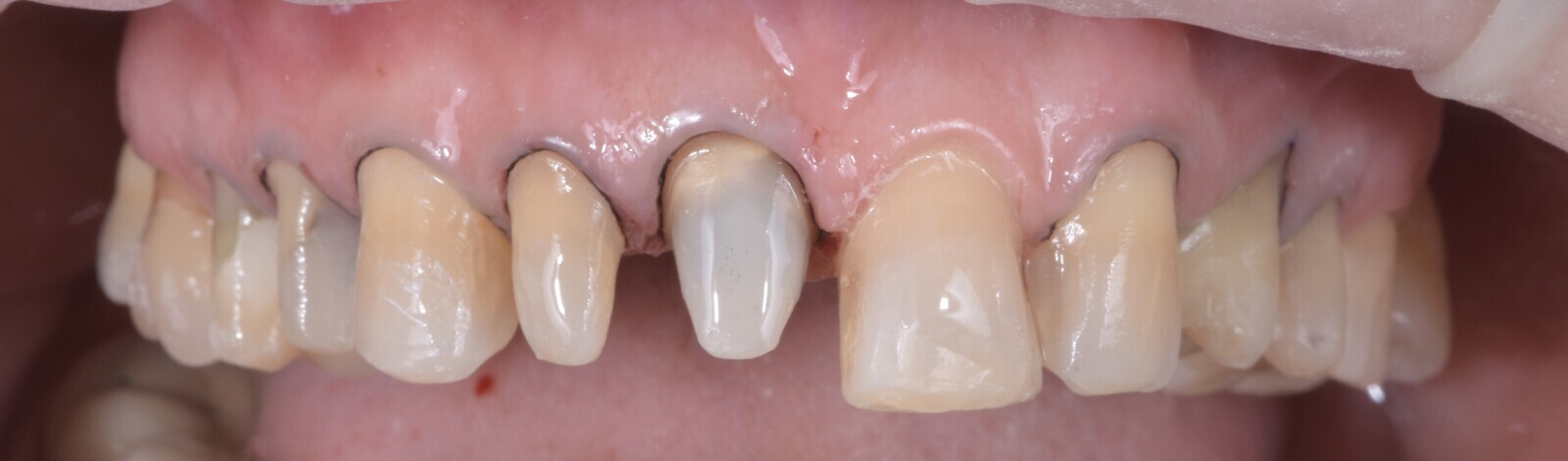

Fig. 17: Prepared teeth after placement of gingival retraction cord.

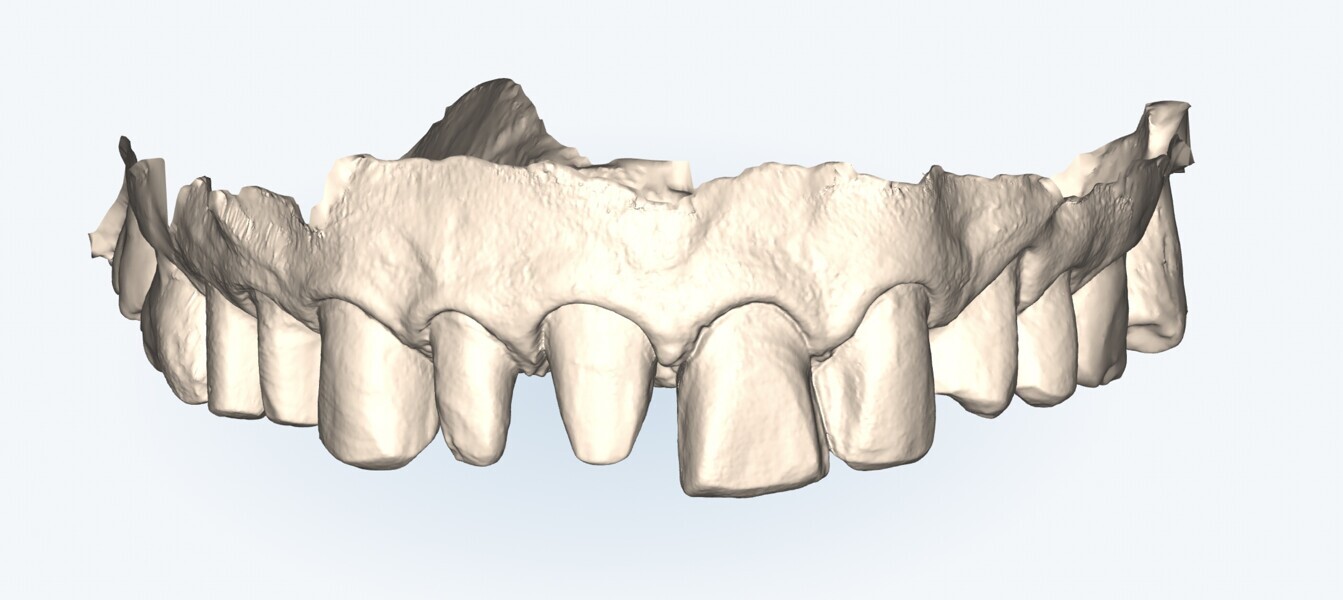

Fig. 18: Intra-oral scan with iTero.

Fig. 19: Final result: partial lithium disilicate restorations on teeth #15, 14, 13, 21, 23, 24 and 25 and complete lithium disilicate crowns on teeth #12 and 11. Dental technician Fabio Corna, Medicalab, Lallio, Italy.

Figs. 20a–c: (a) Extra-oral photographs of the initial situation, (b) after Invisalign Smile Architect simulation and (c) of the final result obtained.

Discussion and conclusion

Invisalign Smile Architect is a powerful software program for planning tooth alignment. It has many tools that are extremely helpful in planning cases that require both orthodontic and restorative treatment. This report has highlighted the importance of 3D superimposition and facial reference lines, in conjunction with digital wax-up after tooth alignment. By enabling a complete pre-visualisation of the entire treatment plan, Invisalign Smile Architect creates new possibilities for interdisciplinary rehabilitation.

The use of this software is helpful from both the clinician’s and the patient’s perspective. The clinician is able to perform better planning owing to realistic previsualisation of the final result, and the macro-, mini- and micro-views are integrated into one software program. This approach allows for an in-depth analysis of the case, effective management of patient records and a comprehensive understanding of the patient’s concerns. It enables immediate visualisation of the impact of tooth alignment and subsequent restorations on the patient’s facial aesthetics, allowing for precise adjustments until all aesthetic and functional are met. Additionally, all project data can be shared with the dental technician at any stage—before or after alignment—promoting improved communication and collaboration within the dental team.

This approach ensures that the patient is better informed about the treatment, including its benefits and limitations, and can visualise and discuss the anticipated outcome. A dedicated appointment is recommended during which to present the ClinCheck simulation and the Invisalign Smile Architect planning. This new workflow supports the development of a strong therapeutic alliance between clinician and patient, fostering trust and shared decision-making.
